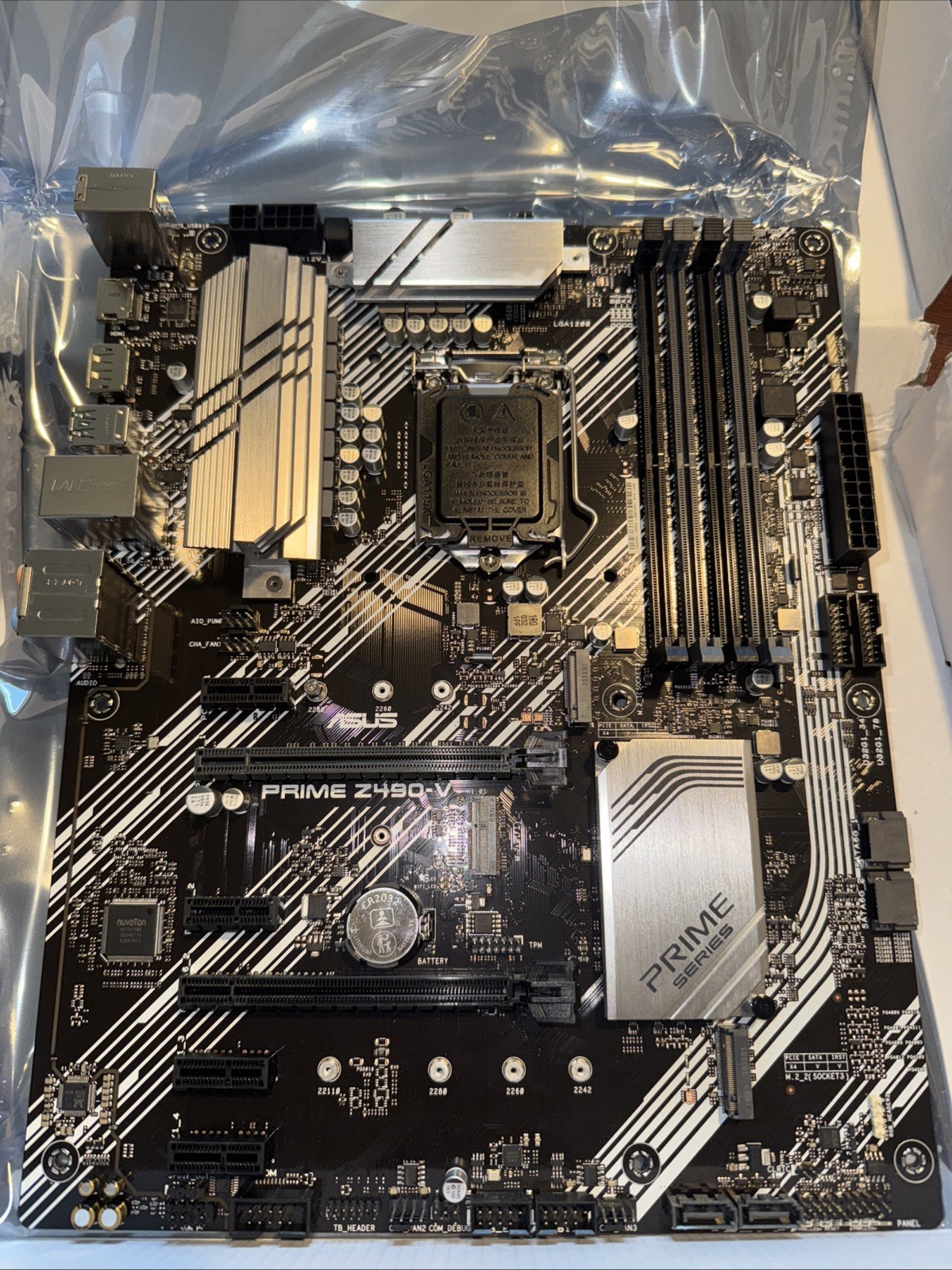

ASUS PRIME Z490-V Motherboard Intel Z490 10th gen DDR4 LGA 1200 ATX w/ IO Shield

About this item

Intel 10th Gen supported Before installing the CPU, please carefully check for bent CPU pins. Bent pins are a common cause of no-POST or dead motherboards, and many users are unaware the damage occurred. Insert the CPU gently to avoid damage. An I/O shield is included. Please handle the CPU installation with care, as the CPU pins are delicate and can bend easily. Bent pins will void the return policy Step-by-step trouble shoot if the board won't boot: Before troubleshooting, please check whether any CPU pins are bent. Pins can sometimes bend during CPU installation and cause the system not to boot. 1) Basic power checks Make sure the power supply switch (on the PSU) is ON and the power cable is fully seated. Confirm the wall outlet or power strip works (try another device or a different outlet). Ensure the 24-pin ATX and 8/4-pin CPU power connectors are firmly plugged into the motherboard. 2) Minimal (barebones) boot the single most effective test Remove all non-essential components: extra drives, extra PCIe cards, RGB hubs, USB devices. Leave only: CPU (with cooler), 1 RAM stick in the slot recommended by the motherboard manual, power supply, and monitor (if needed). Try to power on. If it boots, add one component at a time to find the faulty part. 3) RAM checks (very common cause) Reseat RAM: remove sticks and firmly reseat them until the latches click. Try one RAM stick at a time in the primary slot (usually labeled DIMM_A2 check your manual). If one stick fails but another works, the failing stick may be bad or incompatible. 4) Clear CMOS / Reset BIOS Turn off and unplug. Locate the CMOS jumper (or remove the coin-cell battery) and follow the manual instructions to clear CMOS usually move the jumper for a few seconds or remove the battery for ~30 seconds. Reinstall battery/jumper and try to boot. This resets BIOS settings (useful if an overclock or wrong settings are stopping boot). 5) CPU / cooler / seating checks Double-check the CPU is seated properly and the cooler is installed (loose cooler can prevent proper contact). Inspect the CPU socket for bent pins (carefully, with good light). Reinstall the CPU only if you’re comfortable doing so ——— otherwise advise the buyer to seek local tech help. 6) GPU / display checks If your CPU has onboard video, remove the discrete GPU and display from the motherboard’s video outputs to rule out GPU issues. Confirm the monitor and cable work (try another cable/monitor if available). 7) Look at motherboard status indicators Many boards have Q-LEDs, POST LEDs, or a debug code display. Note which LED lights (CPU, DRAM, VGA, BOOT) or any beep codes and share them with the seller. If the board has a speaker header, attaching a small speaker will give beep codes that help diagnosis. 8) Power supply check If possible, test with another known-good PSU. Some no boot issues are caused by weak or failing PSUs that can power fans but not boot the system. 9) Firmware (BIOS) note If the board is an older BIOS and you have a new CPU, it may require a BIOS update. BIOS updates carry some risk; do not attempt unless you are comfortable or have a compatible CPU available. Contact the seller if you suspect this. 10) What to send the seller if you need help / a return When contacting the seller, include: Order number and motherboard model. Photos: full board, CPU socket area, power connectors attached. Which troubleshooting steps you already tried (especially whether one-stick RAM or CMOS clear worked or not). CPU/RAM model used (helps diagnose compatibility issue). Safety & warranty note Do not attempt advanced repairs (e.g., micro-soldering) if you’re not experienced. If the board is DOA after following these steps, open a return request and include the items above this helps speed up your replacement/refund.

• Brand: ASUS
• Form Factor: ATX
• Socket Type: LGA 1200
• Compatible CPU Brand: Intel
• Number of Memory Slots: 4
• Model: ASUS PRIME Z490-V
• Memory Type: DDR4 SDRAM
• Country of Origin: China

Specifications

Brand

ASUS

Model

ASUS PRIME Z490-V

Form Factor

ATX

Memory Type

DDR4 SDRAM

Socket Type

LGA 1200

Country of Origin

China

Compatible CPU Brand

Intel

Number of Memory Slots

4
