TAILONZ PNEUMATIC Compressed Air Cylinder with 25 mm Bore and 100 mm Stroke, Double Action, with Y Connection and 2 x 6 mm Screw Connections MAL25 x 100

About this item

This TAILONZ MAL25 x 100 air cylinder is built from aluminium for a lightweight yet sturdy design that resists corrosion. It's a double-acting, single-rod cylinder with a 25 mm bore and 100 mm stroke, rated for up to 1.0 MPa, and includes a Y connection plus two 6 mm screw connections. The adjustable buffer and self-lubricating bearing give it smooth, stable operation, making it a solid fit for automated equipment across light industrial, textile, and electronics applications.

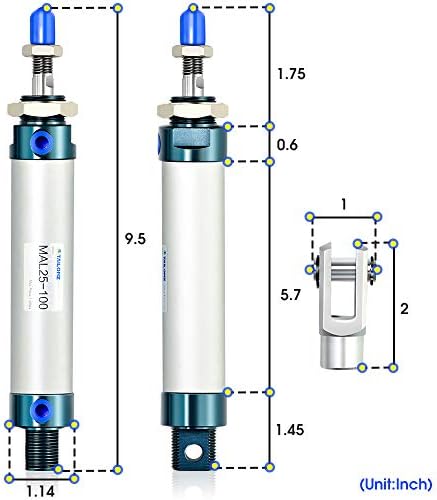

• 25 mm bore, 100 mm stroke, BSP1/8 connection size
• Double-acting cylinder with single rod and adjustable buffer
• Max working pressure 1.0 MPa (145 Psi), runs on compressed air
• Aluminium body resists corrosion and holds up under repeated use
• Self-lubricating bearing keeps the piston rod running smoothly
• Works in -20°C to 80°C, suited for light industry, textile, electronics and machinery setups

Specifications

ASIN

B09H42JR63

Size

‎25mm Bohrung und 100mm Hub

Horsepower

‎1 Horsepower

Item Weight

‎450 g

Part number

‎MAL25-100

Manufacturer

TAILONZ PNEUMATIC

Customer Reviews

4.4 4.4 out of 5 stars (184) 4.4 out of 5 stars

Best Sellers Rank

See Top 100 in Tools & Home Improvement

Country of origin

China

Item model number

MAL25-100

Package Dimensions

25.1 x 5.3 x 5.2 cm; 450 g

Batteries Included?

‎No

Batteries Required?

‎No

Date First Available

26 July 2023

Item Package Quantity

‎1
