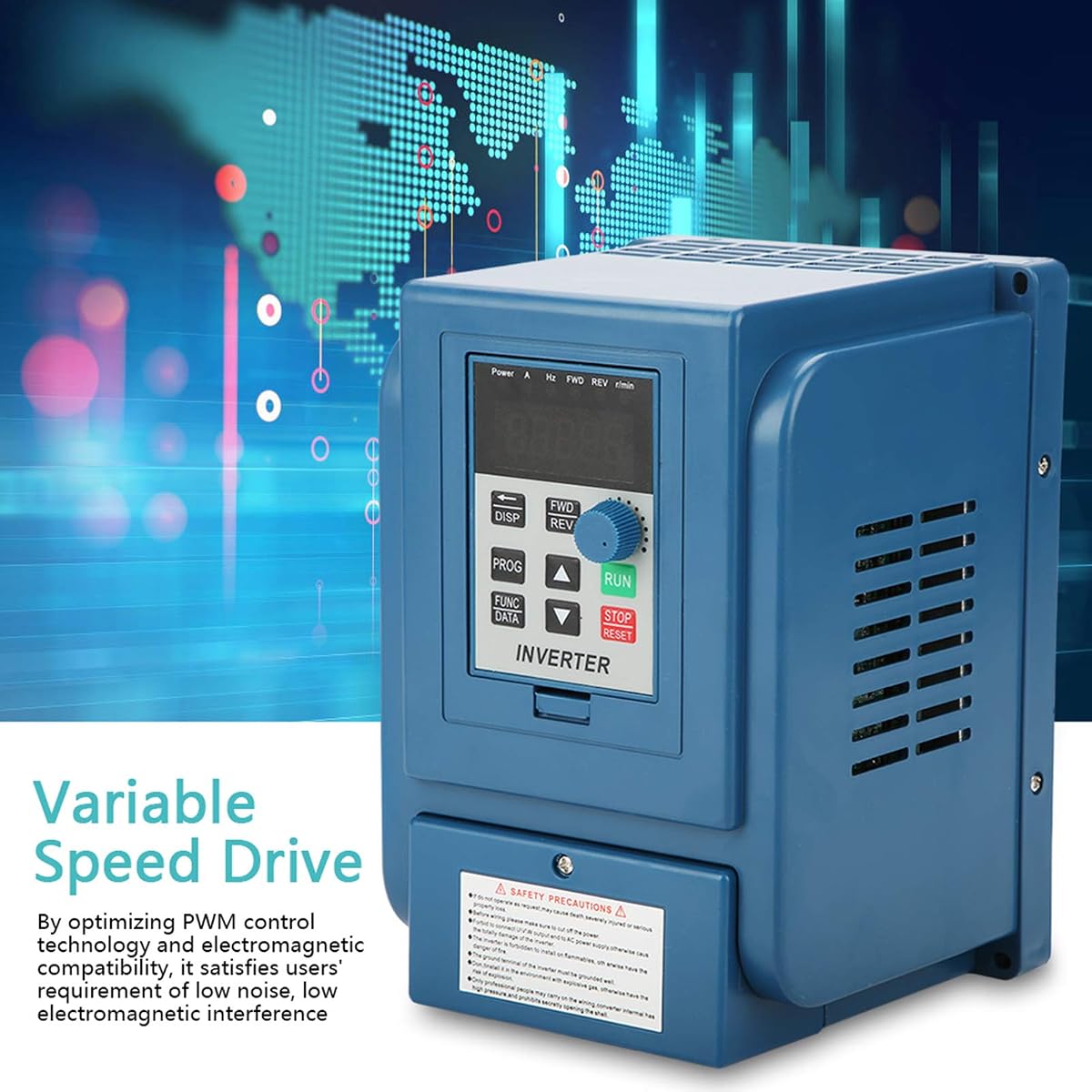

Cryfokt 380VAC 3A Variable Frequency Drive VFD Adjustable Speed Controller for 0.75kW 3-phase AC Motor High Performance

About this item

Spec: Features: This VFD uses unique control method to realize high moment of force, high accuracy and wide speed regulating range driving, with high performance. It has good anti-trip performance and ability to adapt to rough power, temperature, humidity and dust interference, greatly improved stability. By optimizing PWM control technology and electromagnetic compatibility, it satisfies users' requirement of low noise, low electromagnetic interference. Simple to operate and wire, connect to wires by screw terminals which are more convenient. Designed with large heat sink for better heat dissipation. Specifications: Model: AT3-0750X Power Source Phase: Three-phase Rated Voltage: Three-phase AC380V Power Supply Voltage: Low voltage Suitable Motor Power: 0.75kW Filter: Built-in filter DC Power Supply Type: Voltage type Control Method: V/F closed loop Output Voltage Adjusting Method: PWM control Rated Current: 3A Protection: Over-current, over-voltage, over-heat, under-voltage, short circuit protection . Output Frequency: 400Hz Size: Approx. 18*12.5*12.5cm/7.1*4.9*4.9in Weight: 1.3kg(approx.) Note: 1. When adjusting parameter, the VFD must stop working, otherwise it will not be able to save parameter setting. 2. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. Package Includes: 1 x Variable Frequency Drive

• [HIGH PERFORMANCE CONTROL] Experience exceptional control with our advanced 380VAC VFD that employs a unique method to deliver high torque and accuracy, resulting in a wide speed regulating range. This innovative design ensures your 0.75kW AC motor operates with enhanced efficiency, making it the ideal choice for various industrial applications.
• [OUTSTANDING STABILITY] Our VFD is engineered to withstand harsh conditions. It features excellent anti-trip performance and adapts seamlessly to challenging power environments, temperature variations, humidity, and dust interference. Enjoy robust stability, ensuring your operations run smoothly without unexpected interruptions.
• [LOW NOISE OPERATION] Say goodbye to disturbances with our optimized PWM control technology that minimizes noise and electromagnetic interference. This VFD provides a quiet operation, making it perfect for settings where peace and concentration are , enhancing your working environment.
• [EASY INSTALLATION] Simplify your setup with our user-friendly design that includes screw terminals for convenient wiring. The straightforward operating procedures remove complexities, allowing you to get your VFD up and running quickly, saving you valuable time and effort during installation.
• [ HEAT DISSIPATION] The VFD is equipped with a large heat sink to ensure efficient heat dissipation during operation. This feature prevents overheating, extending the lifespan of the unit while maintaining optimal performance for your AC motor, making it a reliable choice for continuous operation.

Specifications

ASIN

B0H8S9QL23

Brand

Cryfokt

Model

Cryfoktbvqo96cf0s

Brand Name

Cryfokt

Part Number

Cryfoktbvqo96cf0s

Manufacturer

Cryfokt

Number of Items

1

Country Of Origin

China

Included Components

User Manual
