HGR20 2000mm Linear Rail Guide Kit 2 Rails 4 Bearing Blocks CNC Router Lathe

Listed on eBay by shopprime365 · 99.6% positive

Landed price to your door

$206

Confirmed with the store today. The final amount is the store's price on the day we buy it.

Express $290Standard $224~0.8 kg

Includes the item, international shipping, customs and handling.

iShip does not sell or own this product. You are asking us to buy it for you from eBay and deliver it to your door — you pay the store's price plus our service fee.

View on the store

About this item

This VEVOR HGR20 kit gives you everything needed to build a precise linear motion axis: two 2000 mm steel rails and four HGH20CA bearing blocks sized to match. The rails hold tight straightness (0.1 mm over 2000 mm) and a fine 0.1-0.22 μm surface finish, letting the blocks glide with minimal friction and noise. With a static load rating of 180 kg and dynamic rating of 116 kg, this set handles the demands of CNC routers, lathes, mills, and 3D printer builds.

HGR20 linear rail kit: 2 rails at 2000 mm (78.74 in) length, plus 4 matching HGH20CA bearing blocks
Rail diameter 20 mm, block width around 25 mm - built for smooth, low-noise sliding
Static load capacity 180 kg (27.76 kN), dynamic load capacity 116 kg (17.75 kN)
Straightness rated at 0.1 mm over the full 2000 mm length, surface finish 0.1-0.22 μm

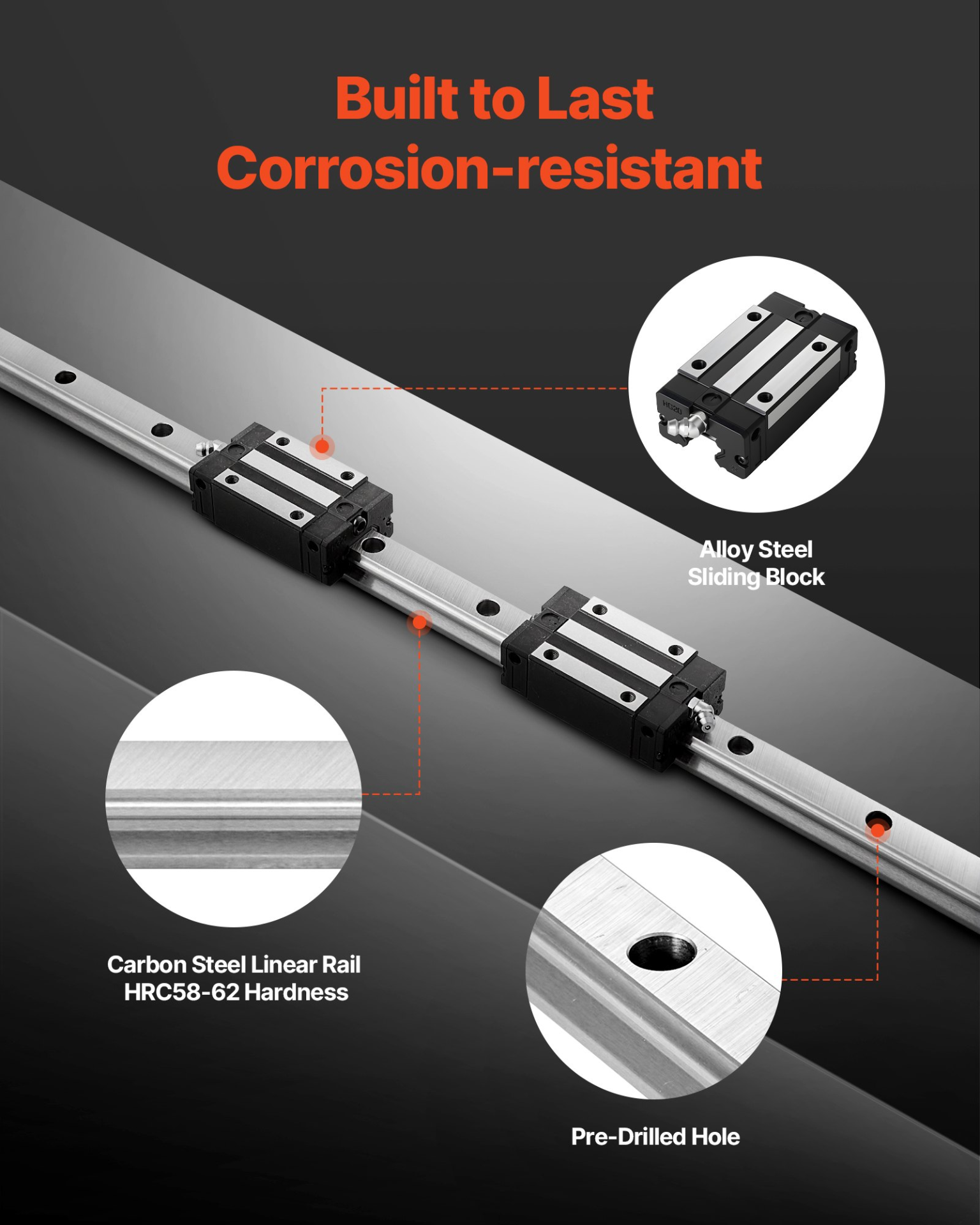

Made from medium carbon steel and aluminum with a corrosion-resistant finish

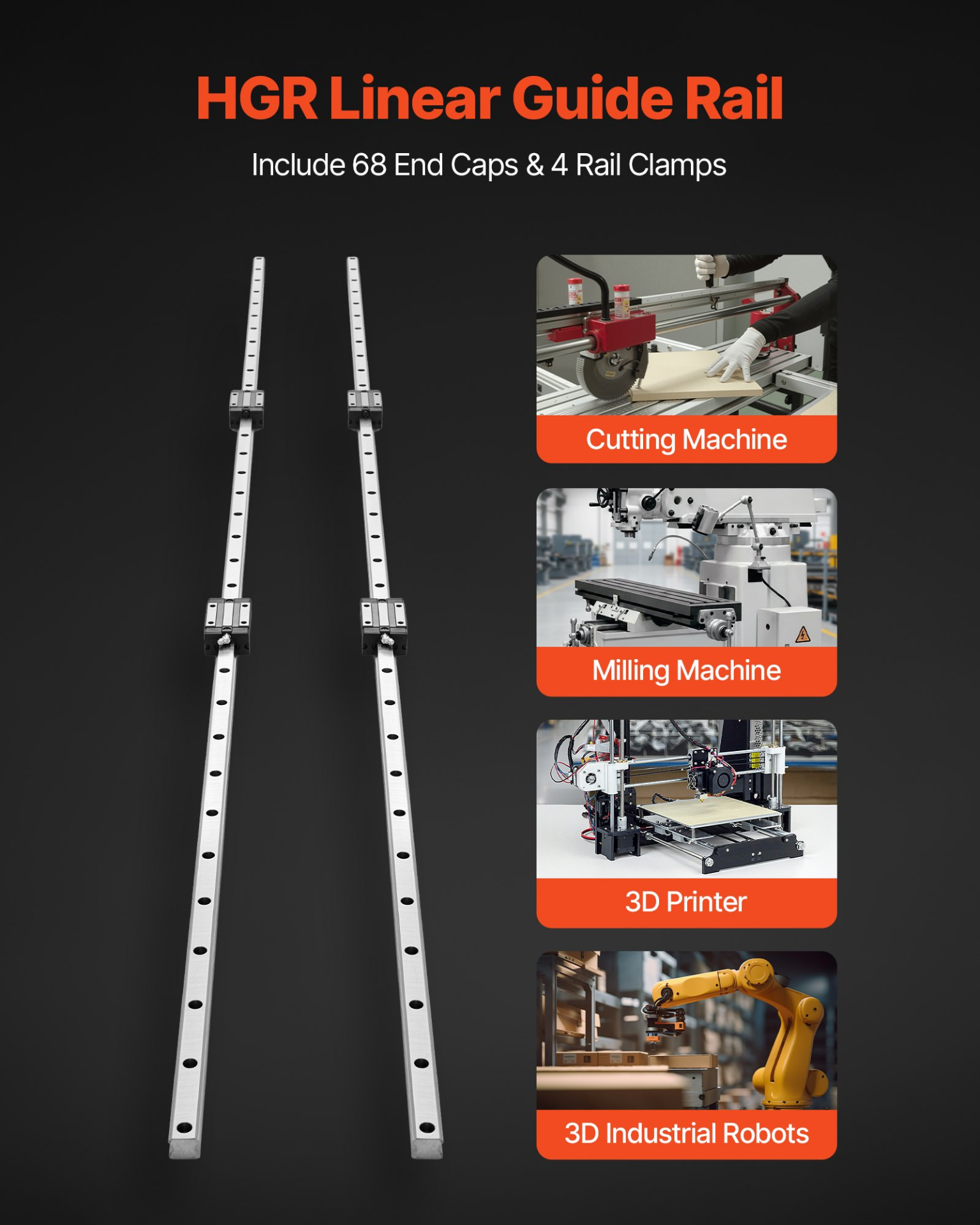

Model number HGH20CA-2000L - fits CNC routers, lathes, mills, and 3D printers

Specifications

Brand: VEVOR
Diameter: 20 mm
