Little Giant VCMA-20ULS 115 Volt, 80 GPH, 1/30 HP Automatic Condensate Removal Pump for HVAC/Refrigeration Systems/Dehumidifiers with Overflow Detection Switch and 6-Foot Cord, White/Black, 554425

About this item

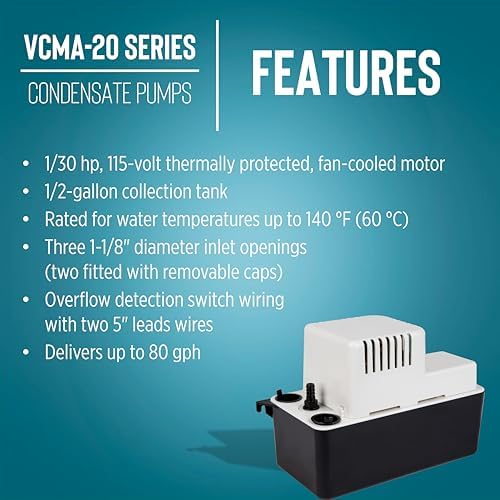

The Little Giant VCMA-20ULS is a compact automatic pump that collects and removes condensate from AC systems, dehumidifiers, furnaces and boilers. It runs on a 1/30 HP, 115V motor rated at 80 GPH (1 ft lift), built with an ABS tank and stainless steel shaft for long-term durability. A built-in overflow detection switch lets you set up a shutdown or alarm signal if the water level gets too high, and the unit comes with a 6-foot cord and 3/8" barbed discharge outlet with check valve ready for installation.

• Automatic condensate pump for AC units, dehumidifiers, furnaces and boilers - pumps 80 GPH at 1 ft lift
• 1/30 HP motor, 115V/1.5A/93W/60Hz, fan-cooled, thermally protected, CSA certified for US and Canada
• ABS tank, motor cover and volute with a stainless steel motor shaft; handles water up to 140°F (60°C)
• Overflow switch can trigger a shutdown or alarm (alarm sold separately) - basic wiring skills needed to set up
• 3/8" OD barbed discharge with check valve, three 1-1/8" inlet holes, 1/2-gallon tank, 20 ft shut-off height, max 8.7 PSI
• 6-foot power cord, compact vertical switch design, white and black housing - model 554425

Specifications

UPC

010121544253

ASIN

B000SM342Q

GTIN

010121544253

Brand

Little Giant

Color

Black/White

Style

115V with Overflow Detection Switch

Voltage

115 volts

Material

Acrylonitrile Butadiene Styrene (ABS)

Flow Rate

1.33 gpm

Brand Name

Little Giant

Horsepower

0.03 hp

Unit Count

1 Count

Item Weight

4.1 pounds

Manufacturer

Franklin Electric Co., Inc.

Model Number

554425

Power Source

Corded Electric

Material Type

Acrylonitrile Butadiene Styrene (ABS)

Product Style

115V with Overflow Detection Switch

Item Type Name

VCMA-20ULS 115 Volt, 80 GPH, 1/30 HP Automatic Condensate Removal Pump for HVAC/Refrigeration Systems/Dehumidifiers with Overflow Detection Switch and 6-Foot Cord

Number of Items

1
