STEPPERONLINE Nema 23 Bipolar CNC Stepper Motor 2.8A 7.6L 1.9Nm CNC Mill Mill

About this item

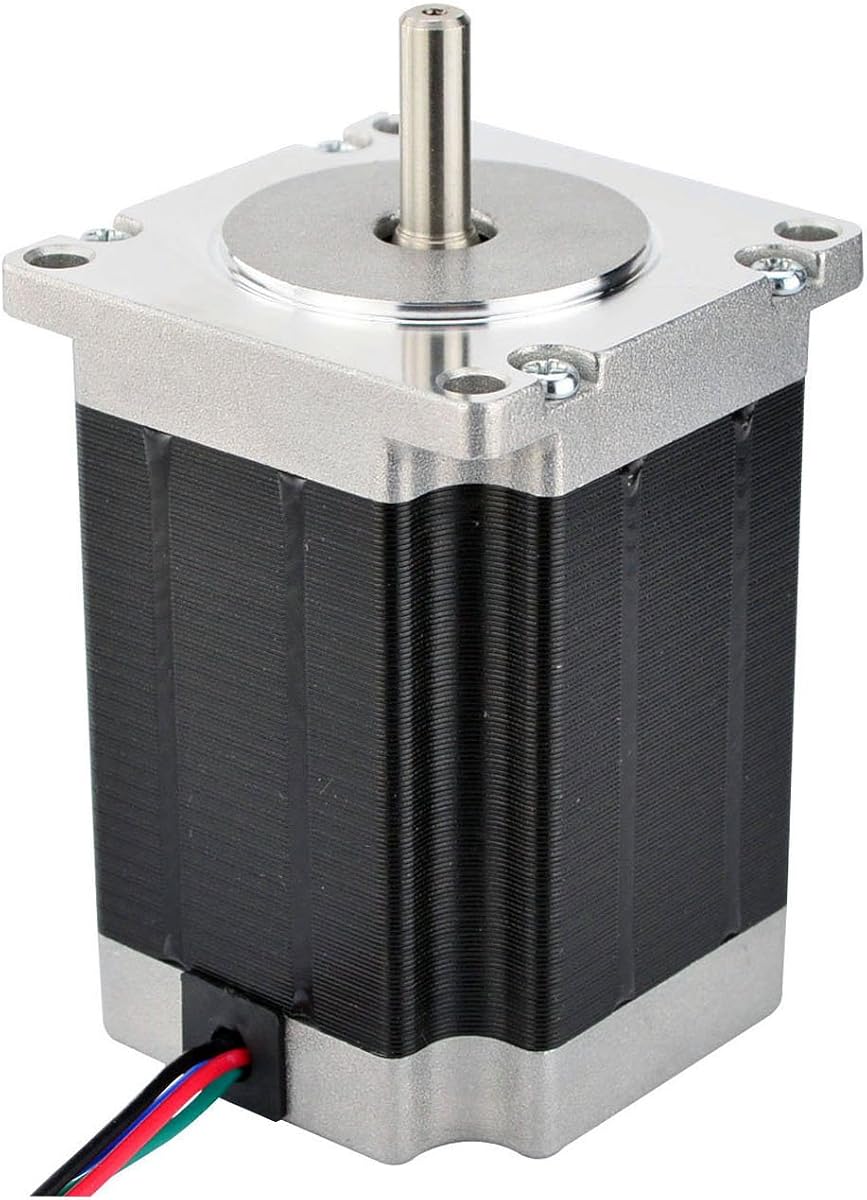

This NEMA 23 bipolar stepper motor (model 23HS30-2804S) delivers 1.9 Nm of holding torque at 2.8A per phase, with a 1.8° step angle giving 200 steps per revolution. It has a 57 x 57 mm frame, 76 mm body length, and a single 6.35 mm (1/4") shaft, making it a common choice for CNC mills and similar motion setups. Four color-coded leads (Black A+, Green A-, Red B+, Blue B-) connect to your driver — always run it through a compatible stepper controller, since direct connection to a power supply will damage the motor.

• NEMA 23 bipolar stepper motor, part number 23HS30-2804S
• 1.9 Nm holding torque, 2.8A rated current per phase, 1.13Ω phase resistance
• 1.8° step angle (200 steps per revolution), inductance 5.4 mH ±20% at 1 kHz
• Frame 57 x 57 mm, body length 76 mm, single 1/4" (6.35mm) shaft, 21mm shaft length with 15mm flat cut
• 4-wire lead configuration: Black (A+), Green (A-), Red (B+), Blue (B-), 500mm lead length
• Weighs 1.2 kg — must run through a stepper driver, never wire directly to a power supply

Specifications

UPC

701056324644 714485506079 714485613890

ASIN

B00PNEPI0A

GTIN

701056324644 714485506079 714485613890

Brand

STEPPERONLINE

Model

23HS30-2804S

Speed

200 RPM

Voltage

3.2 Volts

Brand Name

STEPPERONLINE

Horsepower

1.13 Horsepower

Item Weight

1.04 kg

Part Number

23HS30-2804S

Manufacturer

STEPPERONLINE

Material Type

Alloy Steel Metal Copper Aluminum

Number of Items

1
