This is a full closed-loop stepper motor kit built for 4-axis CNC machines, pairing Nema23 motors (MPN 23HS40-5004D-E1000) with matching closed-loop drivers and dual power supplies. Model 4-CLYS30-V20 gives you 3.00Nm holding torque per motor plus encoder feedback for more accurate positioning than standard open-loop steppers. All cabling and a debug cable are included so you can wire and configure the system without buying extra parts.

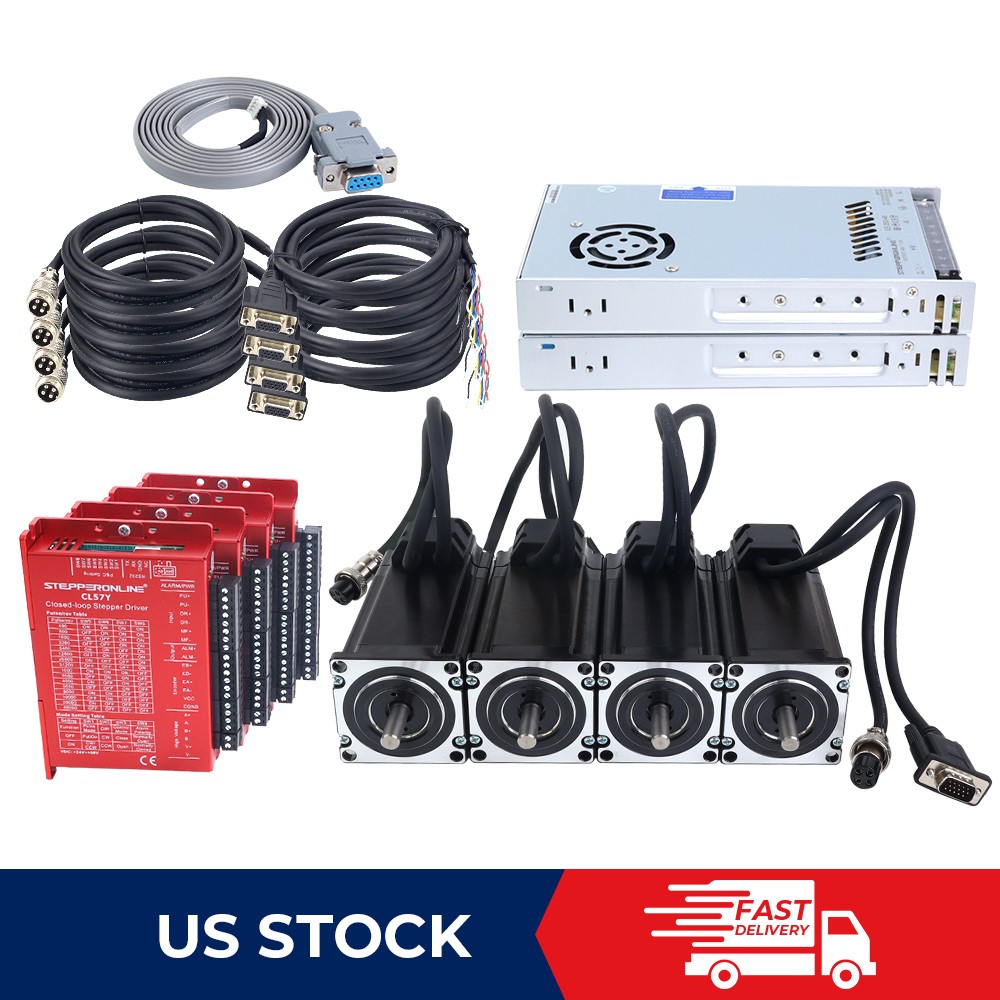

Complete 4-axis CNC upgrade kit: 4x Nema23 closed-loop stepper motors, 4x closed-loop drivers, 2x 350W 48V power supplies, extension cables and an RS232 debug cable

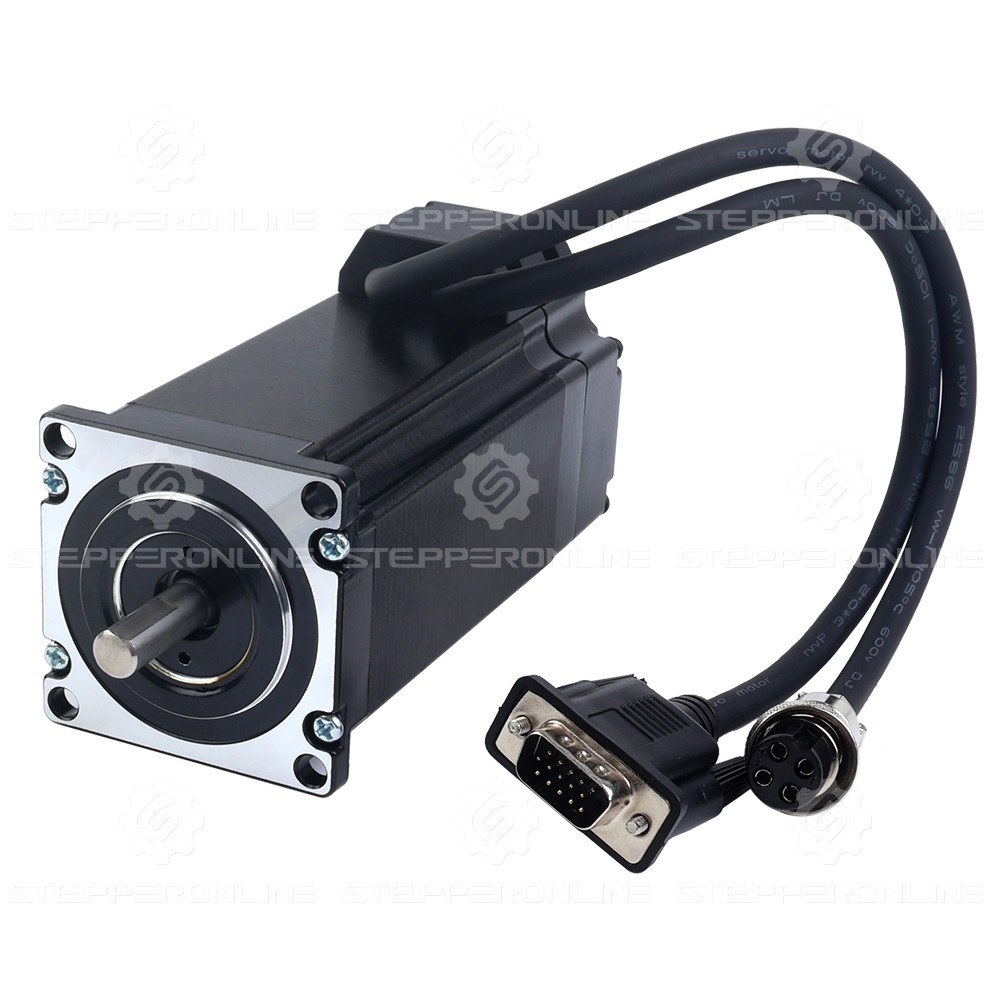

Each motor delivers 3.00Nm (424.83oz.in) holding torque with a built-in 1000PPR (4000CPR) optical encoder for closed-loop position feedback
D-cut 8mm shaft, 1.8° step angle (200 steps/rev), 4-wire bipolar wiring, rated 5A per phase
Drivers accept 24-50VDC input, output up to 7A peak (5.6A RMS), and work with Nema17, 23 and 24 motors
Two 350W switching power supplies (48V, 7.3A, 115/230VAC input) with built-in cooling fan and overcurrent/overvoltage/short-circuit protection
Includes 1.7m (67") motor and encoder extension cables plus a free RS232 cable for driver setup

Specifications

MPN: 4-CLYS30-V20
Brand: StepperOnline
Shaft Type: D-Cut
Current Type: DC
Holding Torque: 3Nm(424.83oz.in)
Shaft Diameter: 8mm
Full Step Angle: 1.8° (200 Steps)
Country of Origin: China
Resistance per Phase: 0.6ohms ± 10%
Wiring Configuration: 4-Wire Bipolar
Rated Current per Phase: 5A
Nominal Rated Input Voltage: 24 V, 48 V
