3 Pole DIN Rail Mount Circuit Breaker, 10 Amp 480V AC Miniature Circuit Breaker,
Listed on eBay by esbushop · 99.7% positive
Landed price to your door
$59
Confirmed with the store today. The final amount is the store's price on the day we buy it.
Includes the item, international shipping, customs and handling.
iShip does not sell or own this product. You are asking us to buy it for you from eBay and deliver it to your door — you pay the store's price plus our service fee.
About this item

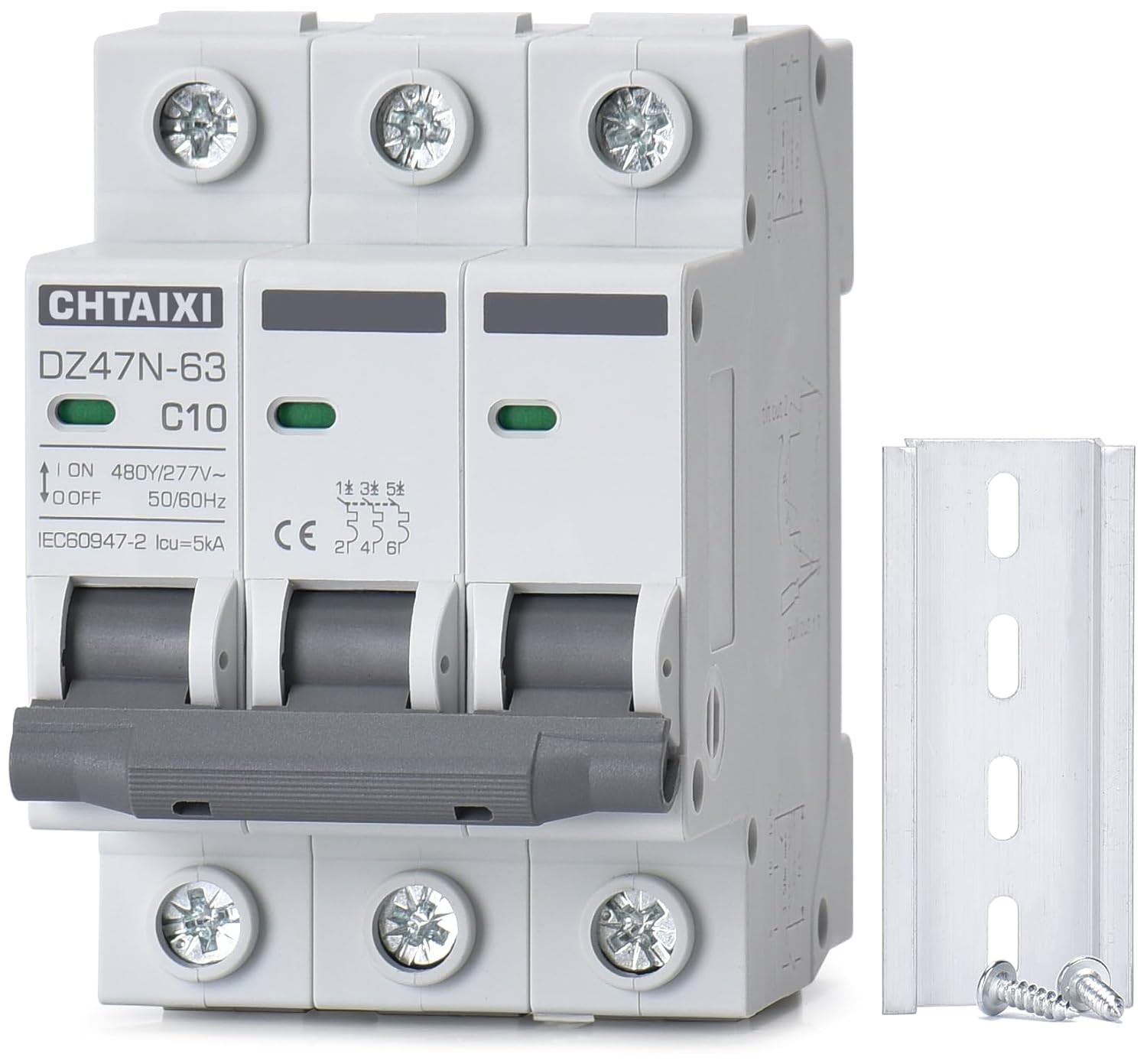

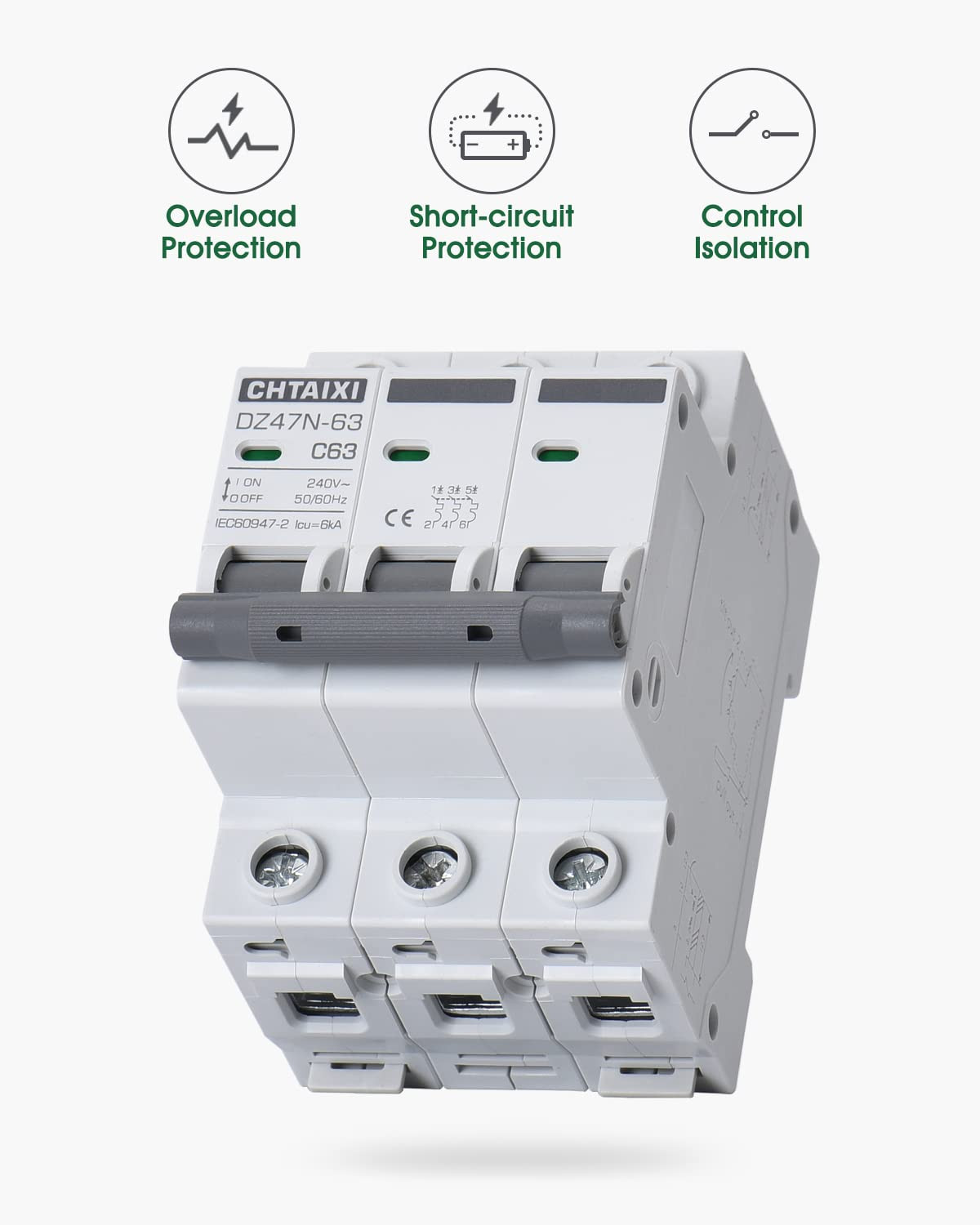

This CHTAIXI 3-pole DIN rail breaker protects 480Y/277V AC circuits from overload and short circuits, and can also be used for manual isolation and control. It uses Curve C thermal-magnetic tripping with silver alloy contacts for durability and a flame-retardant housing for safety. Suited for home wiring, high-power circuits, or general 50/60Hz AC systems, it snaps onto a standard 35mm DIN rail for quick installation.
- 3-pole miniature circuit breaker rated 10A, 480V AC (model 480V, part number 47N63-3PC)
- Curve C thermal-magnetic trip, magnetic trip range 5-10x rated current, breaking capacity 5kA at 480V
- Silver alloy contacts and flame-retardant plastic shell, with red/green ON-OFF indicator window
- Mounts on standard 35mm DIN rail, screw clamp terminals, tightening torque 2.5 N.m
- Rated for 10,000 mechanical and 4,000 electrical operating cycles, -25°C to 60°C, meets IEC60947-2
- Includes the breaker, a DIN rail, and 2 mounting screws
Specifications
- UPC
- 7445010092097
- Brand
- CHTAIXI
- Model
- 480V
- Style
- 10 Amp
- Part Number
- 47N63-3PC
- Manufacturer
- CHTAIXI
- Mounting Type
- DIN Rail Mount
- Current Rating
- 10 Amps
- Number of Poles
- 3
- Item model number
- 480V
- Package Dimensions
- 3.66 x 3.58 x 2.24 inches; 10.23 ounces
- Circuit Breaker Type
- Standard
