FSL40 Version 2.0 Linear Module Linear Rail Guide Ball Screw Linear Stage Actuator Table with Nema 23 Stepper Motor for CNC[300mm Stroke Work Size]

About this item

This FSL40 linear module (300mm stroke) features a fully aluminum body and G1610 ball screw for solid, rust-free performance with low noise. It delivers ±0.02mm accuracy, supports up to 25kg horizontal and 20kg vertical loads, and comes fitted with a Nema 23 (5756) stepper motor reaching speeds up to 255mm/s unloaded. It's built for CNC and automation work — positioning, dispensing, cutting, welding, assembly, and more. Note: units ship as either V1 or V2 version, with the only difference being the backplate mounting method.

• Full aluminum frame with G1610 ball screw — strong, rust-resistant, and quiet in operation
• Positioning accuracy up to ±0.02mm; handles up to 25kg horizontal load and 20kg vertical load
• Comes with a Nema 23 (5756) stepper motor rated up to 1200 rpm — max speed 255mm/s unloaded, 180mm/s under horizontal load, 80mm/s under vertical load
• 300mm stroke length, built for CNC and automation setups

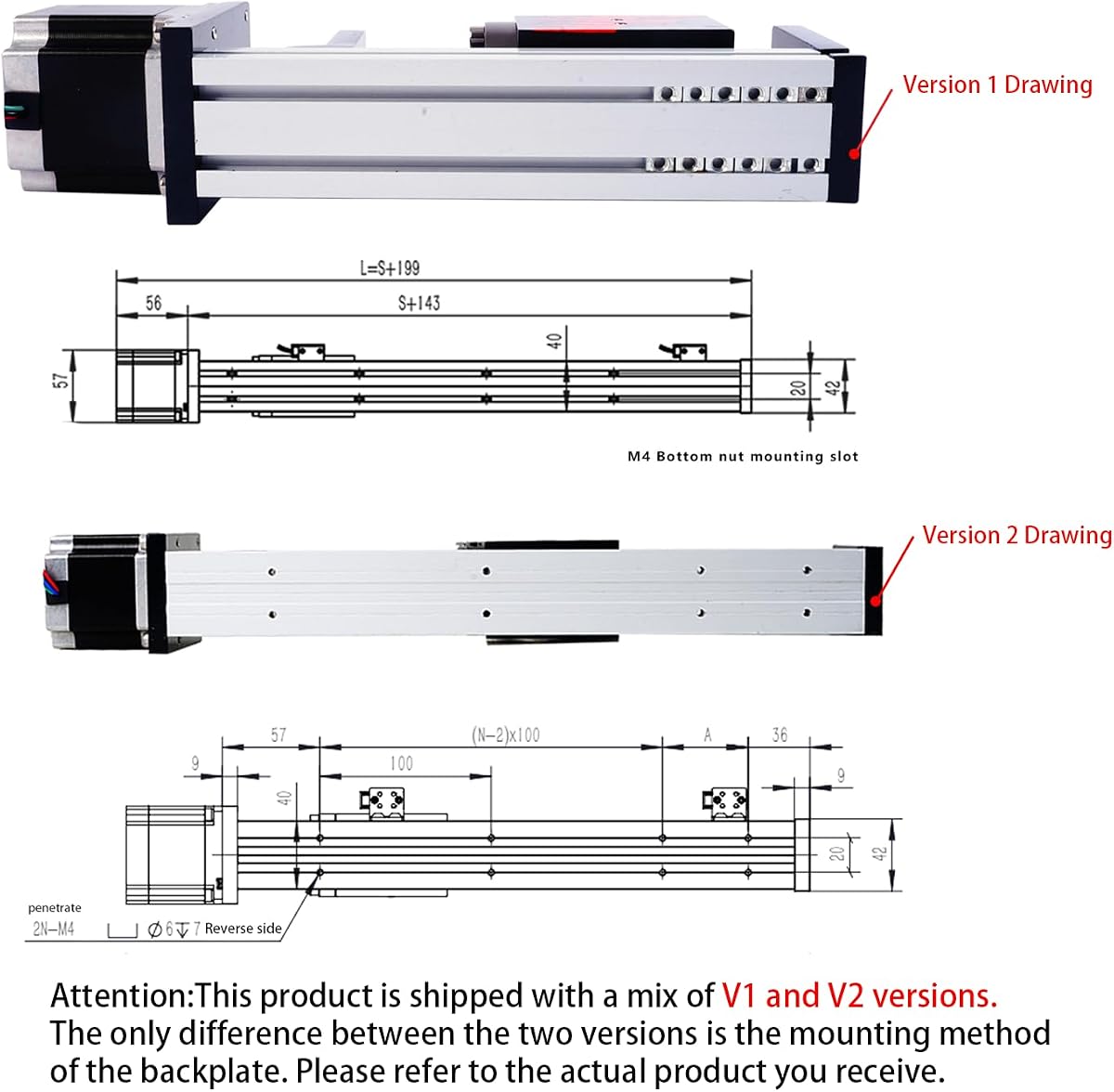

• Sold as FSL40/FSK40, same module — may arrive as V1 or V2, which only differ in backplate mounting method
• Suited for tasks like dispensing, spray painting, inspection, cutting, welding, assembly, screw locking, and palletizing

Specifications

ASIN

‎B0CG5S1C8T

Item Weight

‎6.82 pounds

Manufacturer

‎FUYU

Best Sellers Rank

#60,641 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #73 in Linear Motion Actuators

Package Dimensions

‎22.5 x 4.75 x 4 inches

Date First Available

‎August 21, 2023
