US SHIP】4Axis CNC Kit Nema23 Stepper Motor+TB6600 Driver+Mach3 Card+Power Supply

Listed on eBay by autoparts5021 · 99.2% positive

Landed price to your door

$284

Confirmed with the store today. The final amount is the store's price on the day we buy it.

Express $461Standard $305~5.0 kg

Includes the item, international shipping, customs and handling.

iShip does not sell or own this product. You are asking us to buy it for you from eBay and deliver it to your door — you pay the store's price plus our service fee.

View on the store

About this item

This kit gives you everything needed to build or upgrade a 4-axis CNC machine: four Nema23 stepper motors, four TB6600 drivers, a Mach3 USB control board, and a 350W 24V power supply. The motors deliver 270Oz-in of torque for precise, reliable movement, while the TB6600 drivers offer adjustable current and microstepping for smooth operation. The Mach3 card connects via USB and handles limit switches, e-stop, and relay-controlled spindle/pump functions for a complete control setup.

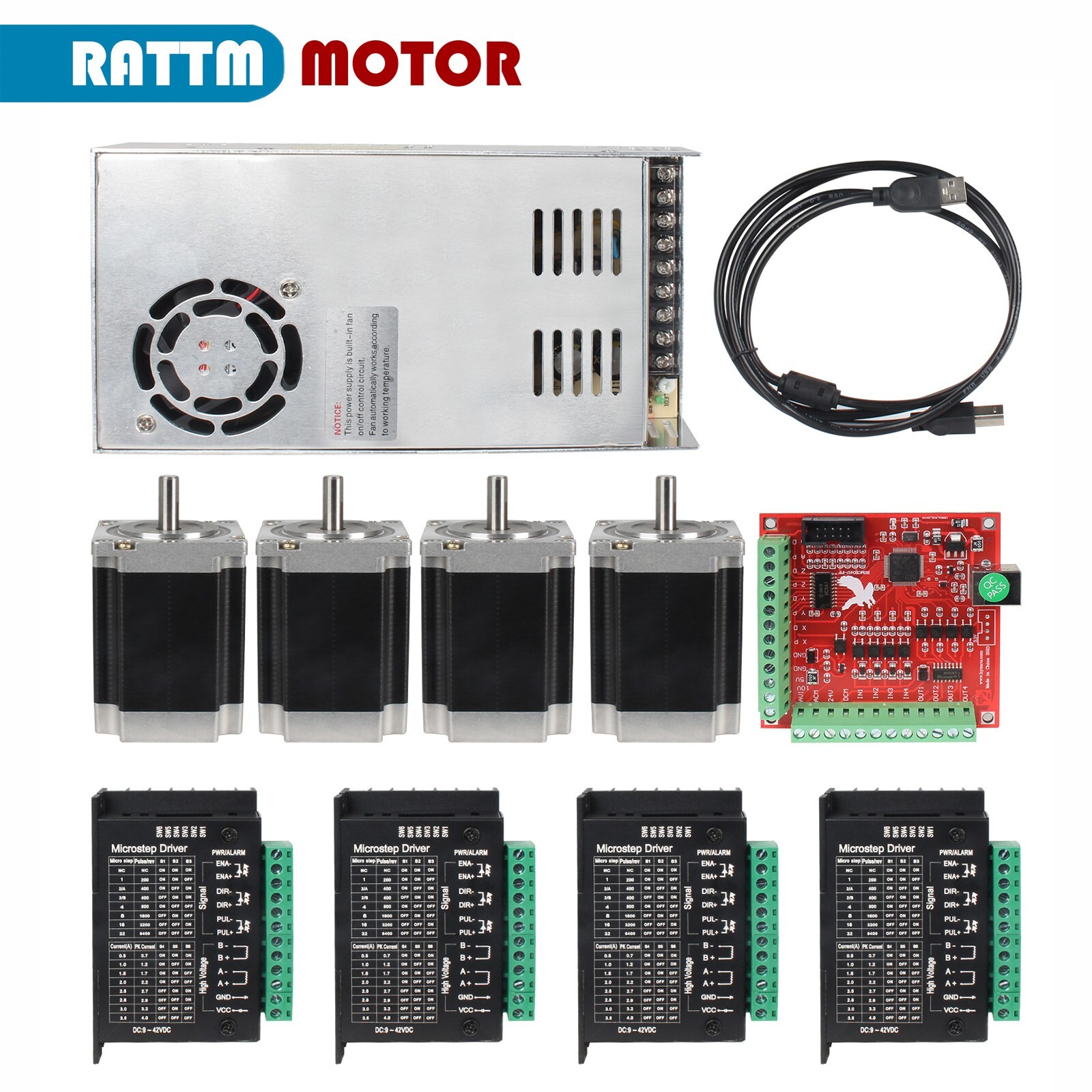

Complete 4-axis CNC upgrade kit: 4x Nema23 stepper motors, 4x TB6600 drivers, 1x Mach3 USB control card, and 1x 350W power supply
Nema23 motors measure 57x76mm with 270Oz-in (1.8Nm) holding torque, 1.8° step angle, and 3A rated current
TB6600 drivers accept DC9-42V input, output 0.5-4.0A, and offer 7 microstep settings with 8-level current control
Mach3 USB motion control card supports up to 100KHz pulse frequency, with 4 general inputs (limit/e-stop/probe) and 4 relay outputs for spindle and pump control

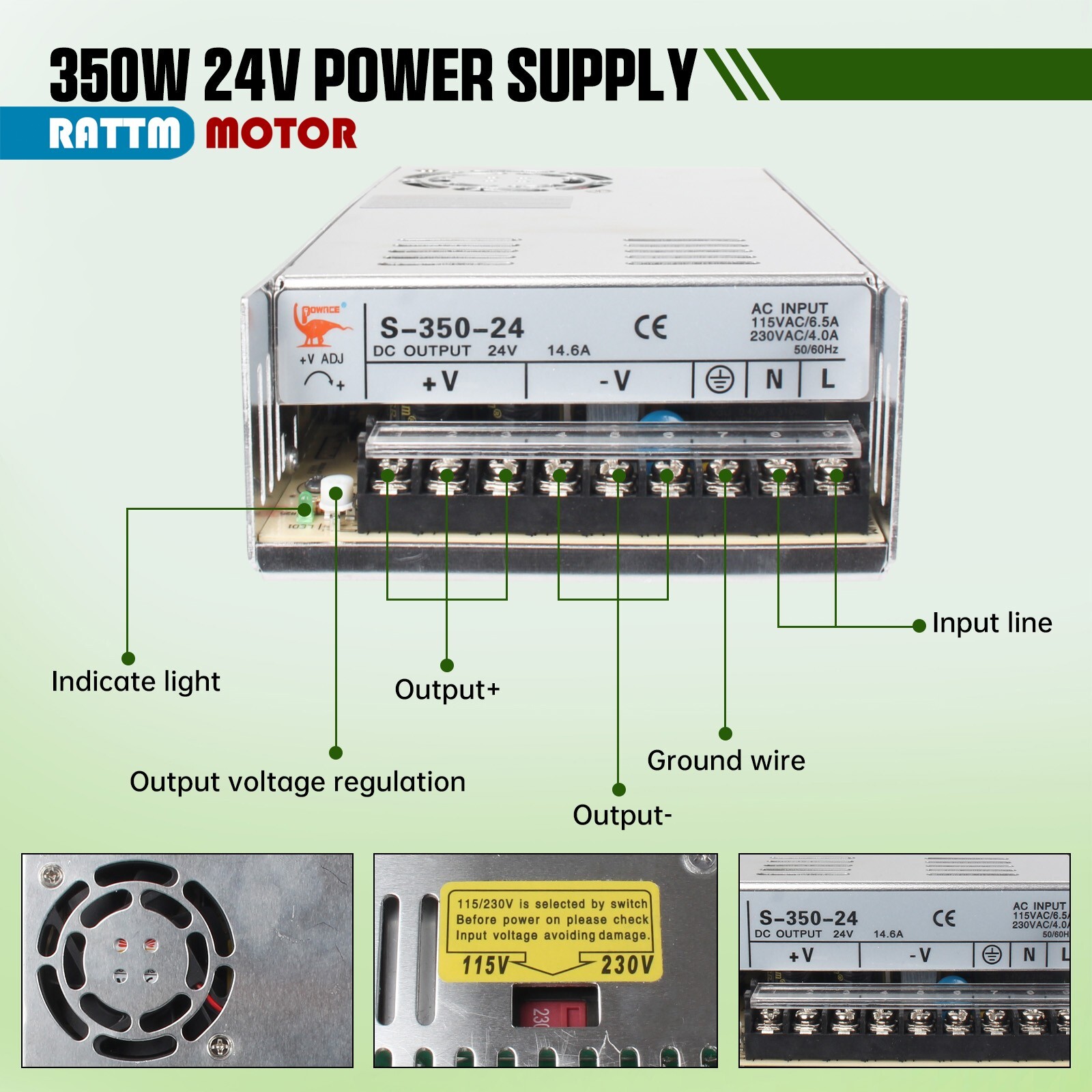

350W 24V DC switching power supply delivers 0-14.5A output with overload and over-voltage protection
Works with standard 4-wire stepper motors; wiring guide for Pul/Dir/GND and motor A+/A-/B+/B- included

Specifications

Brand: RATTMMOTOR
Model: TB6600
Unit Type: Unit
Current Type: DC
Unit Quantity: 1
Country of Origin: China
Nominal Rated Input Voltage: 24 V
