STEPPERONLINE Nema 23 Stepper Motor 2Nm(283oz.in) 2.8A 76mm 23HS30-2804S CNC

Listed on eBay by stepperonline · 100% positive

Landed price to your door

$67

Confirmed with the store today. The final amount is the store's price on the day we buy it.

Express $132Standard $74~1.1 kg

Includes the item, international shipping, customs and handling.

iShip does not sell or own this product. You are asking us to buy it for you from eBay and deliver it to your door — you pay the store's price plus our service fee.

View on the store

About this item

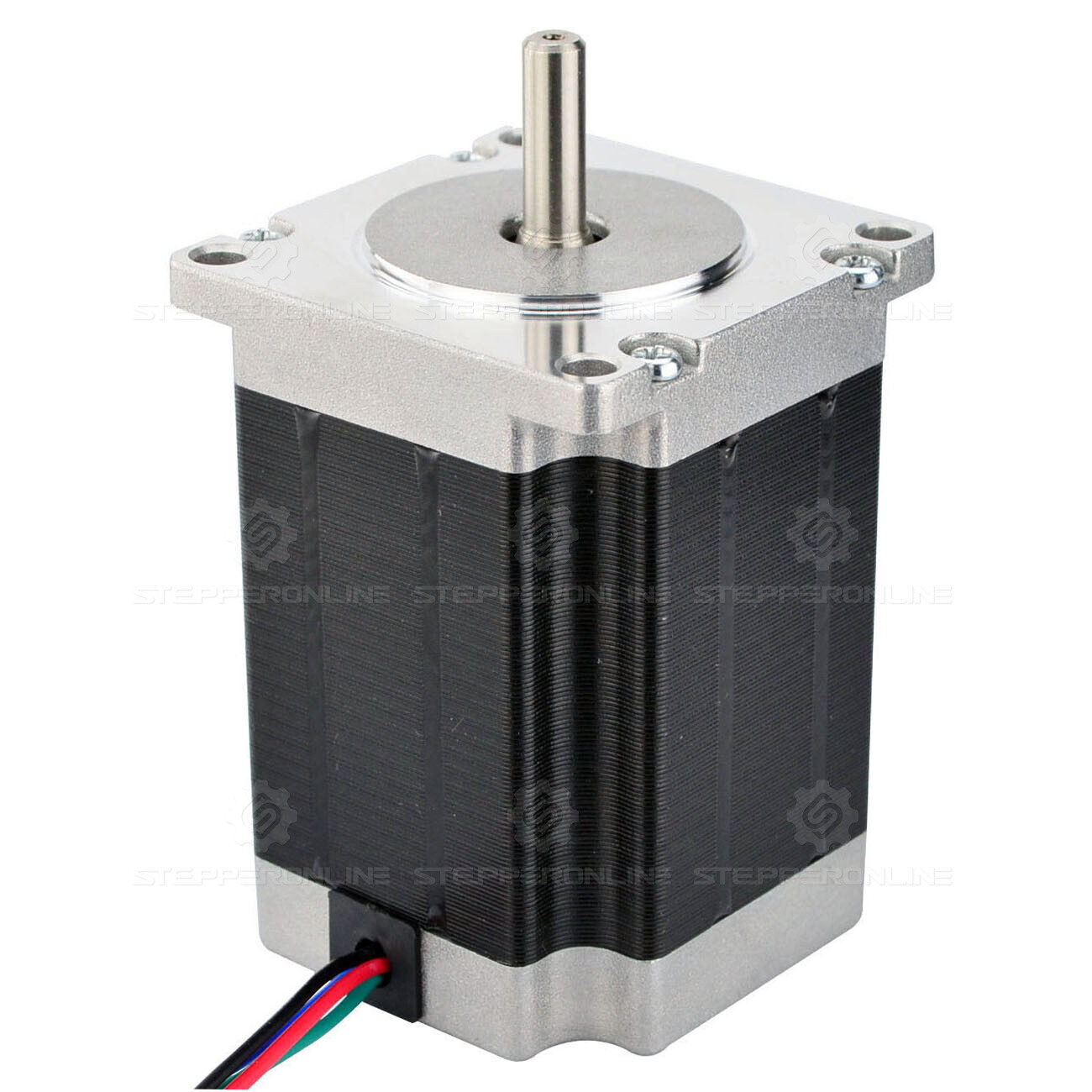

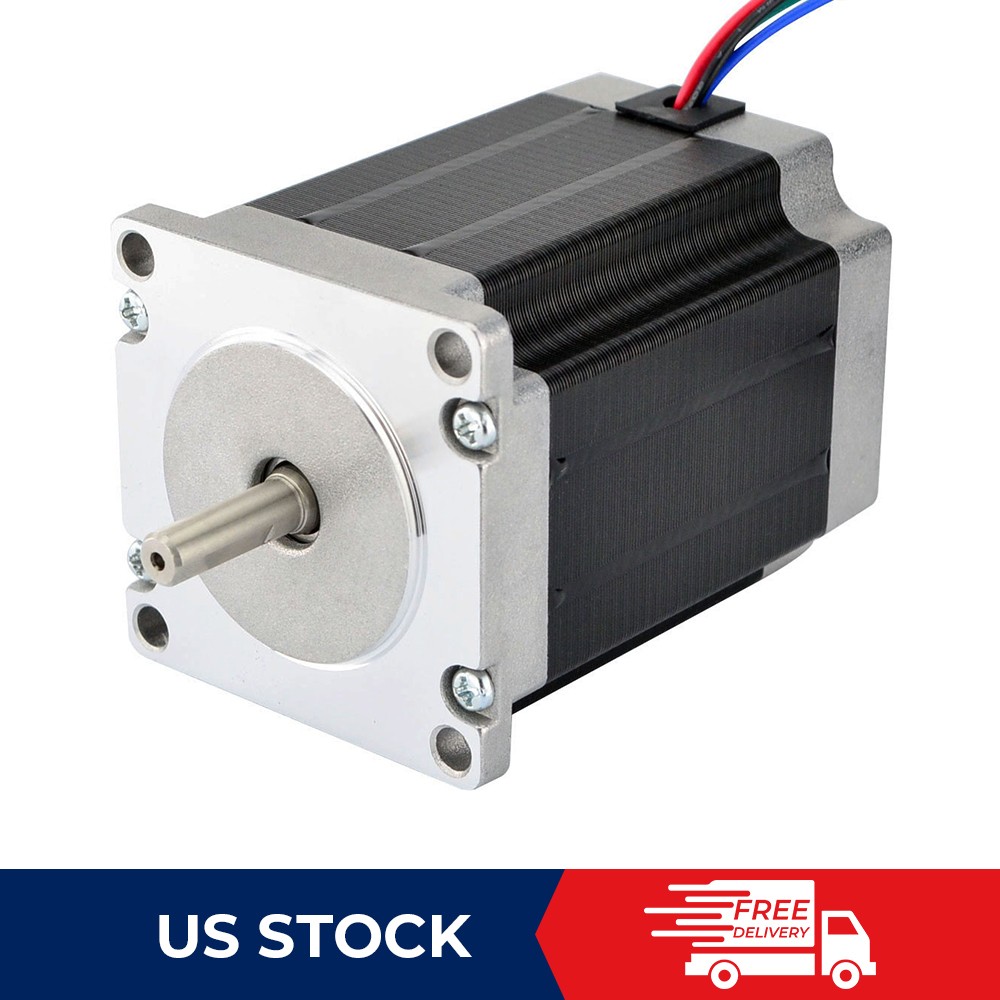

This is a NEMA 23 bipolar stepper motor from STEPPERONLINE, model 23HS30-2804S, built for CNC and general motion control use. It steps at 1.8° per full step (200 steps/rev) and draws 2.8A per phase, delivering a holding torque of 2Nm (283oz.in). It runs on 24-48VDC input and weighs roughly 1.1kg with a 76mm body length.

NEMA 23 bipolar stepper motor, model 23HS30-2804S, 76mm body length
1.8° step angle (200 steps per revolution) with 5% step accuracy
2.8A rated current per phase, holding torque 2Nm (283oz.in)
Works with 24-48VDC input, phase resistance 1.13 ohms, inductance 5.4mH±20% (1kHz)
Weighs about 1.1kg, suitable for CNC routers and similar motion control builds

Specifications

MPN: 23HS302804S
UPC: 0705701802990
Brand: STEPPERONLINE
Model: US045
Current Type: DC
Holding Torque: 1.9Nm(269oz.in)
Full Step Angle: 1.8° (200 Steps)
Country of Origin: China
Wiring Configuration: 4-Wire Bipolar
Rated Current per Phase: 2.8A
Actual Rated Input Voltage: 24-48VDC
Nominal Rated Input Voltage: 24 V, 48 V
