Linear Rail Guide Slide Stage Table&Manual Sliding Table Linear Rail Guide 7.09"

Listed on eBay by zshinhpy · 99.7% positive

Landed price to your door

$89

Confirmed with the store today. The final amount is the store's price on the day we buy it.

Express $180Standard $100~1.6 kg

Includes the item, international shipping, customs and handling.

iShip does not sell or own this product. You are asking us to buy it for you from eBay and deliver it to your door — you pay the store's price plus our service fee.

View on the store

About this item

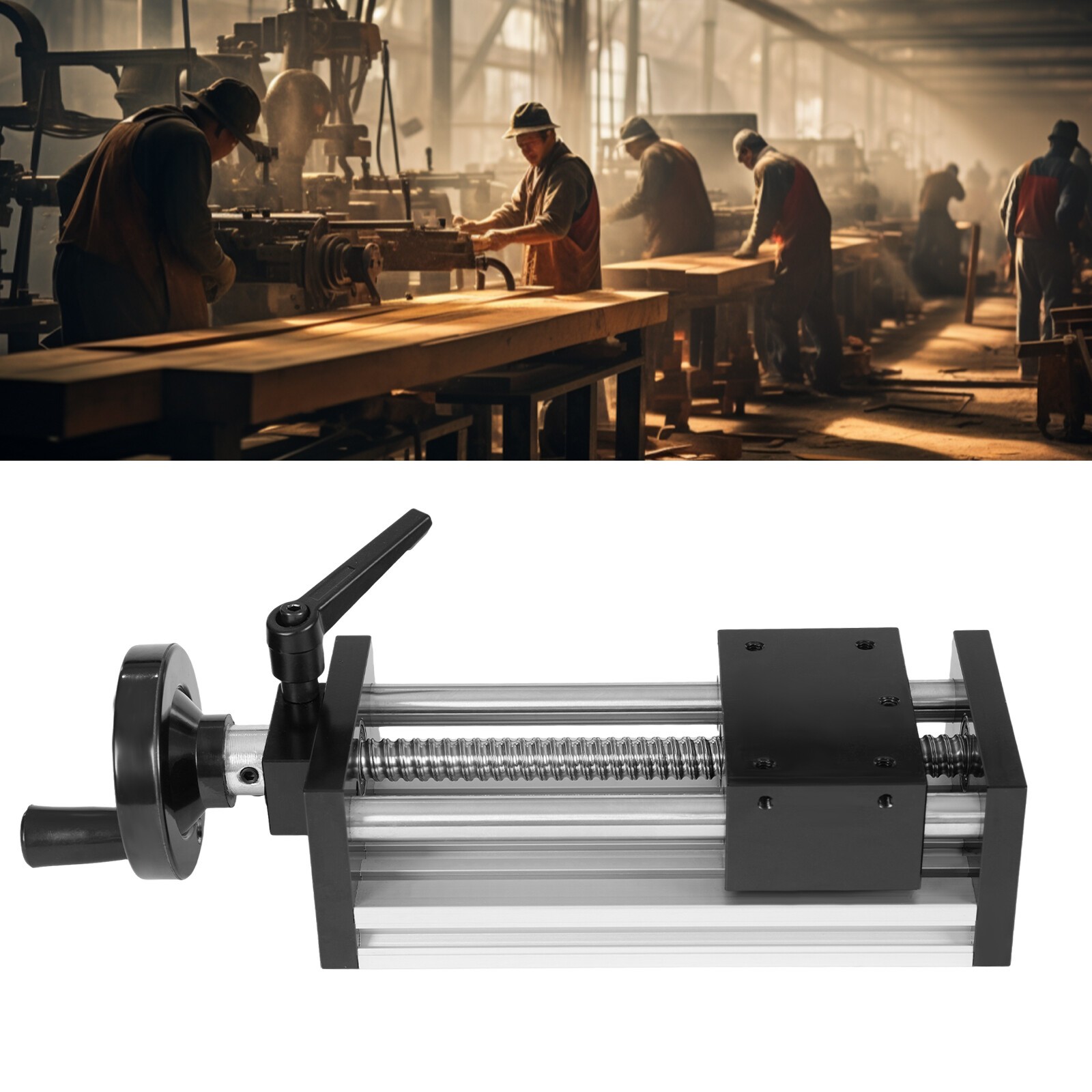

This is a manual linear rail slide table built from aviation aluminum, designed for fine positioning in CNC rigs, test equipment, and optical lab setups. The dual optical-axis frame and ball-screw mechanism give it ±0.05mm accuracy with smooth, low-noise operation, while the ergonomic handle and locking function let you fine-tune position by hand. It needs no external power or control box, just turn the handle to move the stage along its 100mm stroke.

Aviation aluminum body with dual optical-axis design for stable, precise movement
Manual ball-screw slide, ±0.05mm positioning accuracy, 5mm lead
Load capacity: 30kg horizontal / 15kg vertical
100mm effective stroke, 180mm (7.09") total length
Mounting: M4 side holes, 4×M5 slider holes (30×60mm spacing), M6 bottom nuts
No power needed — good for CNC setups, optical benches, and precision measurement work

Specifications

Lead: 5mm/0.2in
Brand: Unbranded
Color: Black, Silver
Material: Aviation Aluminum
Operation Mode: Manual
😊Please Note: Domestic warehouse, delivery within 1 working day
✨Shipping Notice: Fast delivery from USA warehouse
Positioning Accuracy: ± 0.05mm
Manufacturer Warranty: 3 Years
Side Mounting Hole Size: M4
