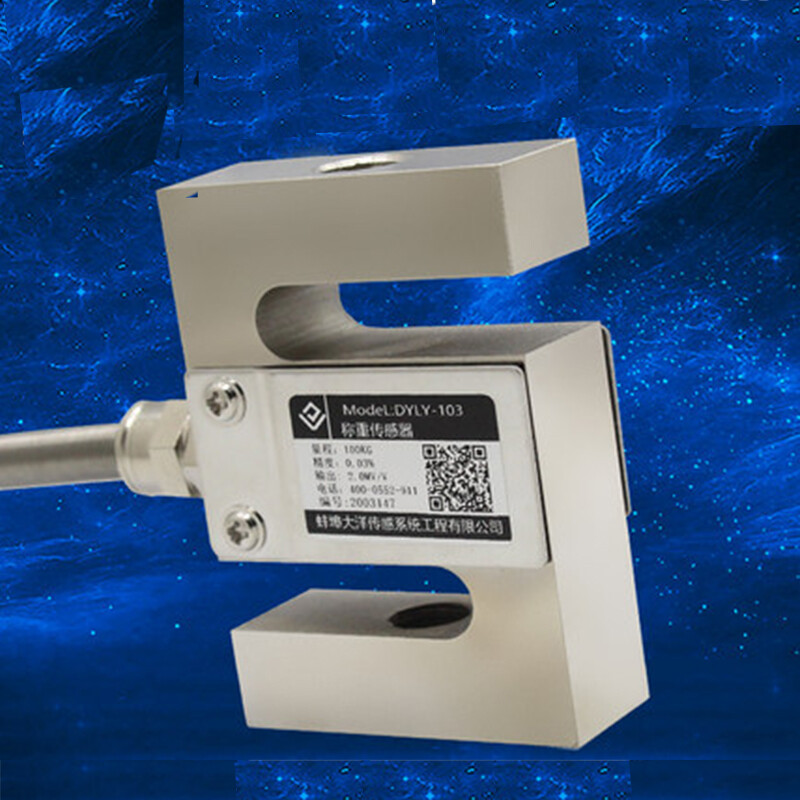

S-TYPE Beam Load Cell Scale Pressure Sensor Weighting Sensor with Cable 100Kg

Listed on eBay by shopspecials · 100% positive

Landed price to your door

$87

Confirmed with the store today. The final amount is the store's price on the day we buy it.

Express $152Standard $94~0.5 kg

Includes the item, international shipping, customs and handling.

iShip does not sell or own this product. You are asking us to buy it for you from eBay and deliver it to your door — you pay the store's price plus our service fee.

View on the store

About this item

This S-type beam load cell measures loads from 0 to 100kg and reads both pulling (tension) and pushing (compression) forces. Built from sealed alloy steel, it resists oil, water and corrosion, making it fit for demanding industrial settings like mixing or batching stations. It outputs 2.0mV/V with 350Ω impedance, runs on 5-15V excitation, and operates reliably between -20°C and 80°C. Comes with wired cable ready for connection.

S-type beam load cell, 0-100kg measuring range, handles both tension and compression
Alloy steel body, sealed against oil, water and corrosion for tough work sites
Rated output 2.0mV/V, input impedance 350Ω, recommended excitation 5-15V
Non-linearity 0.05%F.S., zero balance ±1%F.S., insulation ≥5000MΩ/100VDC
Operating temperature -20°C to 80°C, comes with connecting cable
Suited for mixing stations, batching machines, asphalt plants and similar industrial scales

Specifications

Brand: Unbranded
Material: Alloysteel
Impedance: 350Ω
Cable size: 0.2-2T ψ5x2M, 3-20T ψ5-5M
Hysteresis: 0.05%F.S
Insulation: ≥5000MΩ/100VDC
Creep(30min): 0.05%F.S.
Rated Output: 2.0mV/V
Zero balance: ±1%F.S.
Non-linearity: 0.05%F.S
Repeatability: 0.03%F.S.
Measuring range: 0-100kg
Safe load limit: 150%
Wire connection: EX + Red, Ex - Black, Sig + Green, Sig - White
Ultimate load limit: 200%
Temp Effect on output: 0.05%F.S./10℃
Recommended Excitation: 5-15V
Operating temperature range: -20-80°C
