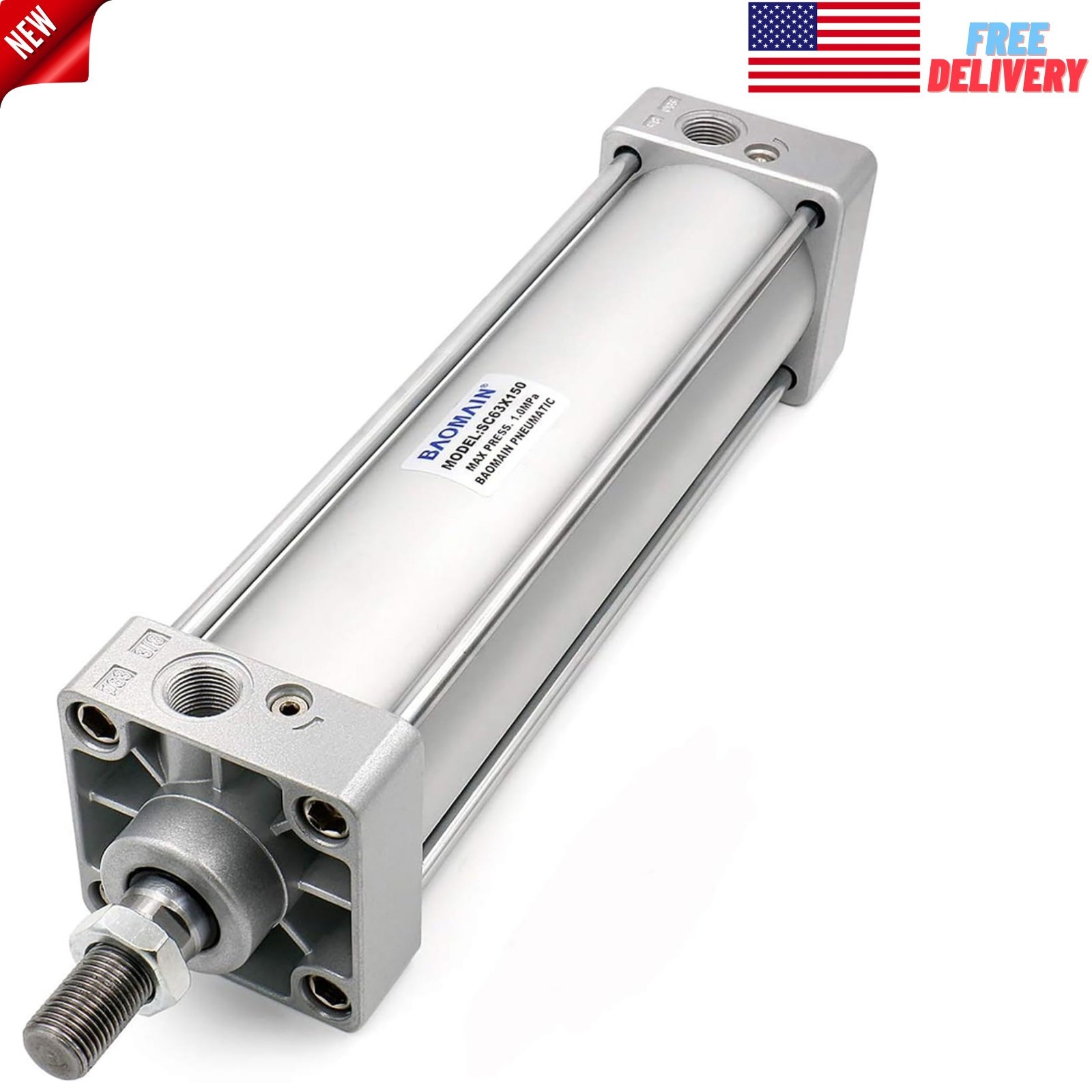

Pneumatic Air Cylinder Screwed Single Piston Rod Dual Action 2.5" Bore 6" Stroke

Listed on eBay by funnymonkeys · 100% positive

Landed price to your door

$126

Indicative price. Stores change prices, so the final amount is the store's price on the day we buy — we tell you before charging any difference.

Economy shipping · ~1.9 kg · faster options at checkout

Includes shipping and taxes.

View on the store

About this item

This is a double-acting pneumatic air cylinder, model SC 63 x 150, with a 2.5" bore and 6" stroke and a screwed single piston rod. It runs on PT 3/8" ports with an M16 x 1.5 piston rod thread, rated for a maximum pressure of 1.0 MPa (145 psi) and up to 280 kgf of theoretical force. The unit weighs about 2370g (5.2 lbs) and ships with 2 fittings included.

Model SC 63 x 150 — 2.5" (63mm) bore, 6" (150mm) stroke, single rod
Double-acting cylinder, screwed rod type
Port size PT 3/8", piston rod thread M16 x 1.5
Max pressure 1.0 MPa (145 psi), max theoretical force 280 kgf
Weight approx. 2370g (5.2 lbs)
Includes 1 cylinder and 2 fittings

Specifications

Brand: Unbranded
Cylinder Type: Single-Rod Cylinder
Cylinder Action: Double-Acting
Maximum Pressure: 1.0 MPa

iShip does not sell or own this product. You are asking us to buy it for you from eBay and deliver it to your door — you pay the store's price plus our service fee.
