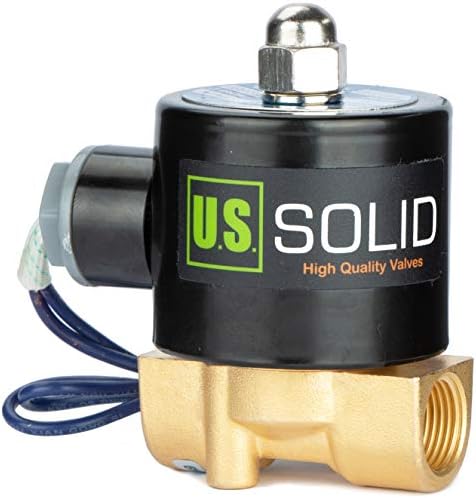

U.S. Solid 3/8" Brass Electric Solenoid Valve - 12V DC, VITON Gasket, Direct Acting, Normally Closed for Air, Gas, Fuel Applications

About this item

This U.S. Solid solenoid valve is a 3/8" brass, 12V DC, direct acting, normally closed valve fitted with a VITON gasket for use with fuels, gas, and air. Its brass body resists corrosion and holds up under higher temperatures, but it's not meant for drinking water or other water systems. The coil is designed to run cooler than older versions, starting at 19W and settling to roughly 10-13W once it reaches operating temperature. Note that it's meant for intermittent use only - avoid running it continuously for more than 8 hours at a stretch.

• 3/8" brass body, normally closed, direct acting, runs on 12V DC
• Low-power coil: starts at 19W, drops to about 10-13W once warmed up, so it stays cooler than older models
• VITON seal handles gasoline, diesel, kerosene, natural gas and air - not for drinking water or water lines
• Opens and closes in under 1 second, rated for well over a million cycles with normal care
• Not built for continuous duty - keep each cycle under 8 hours or the coil can burn out

Specifications

UPC

853996003292

ASIN

B007N0GRIE

GTIN

853996003292

Size

3/8 Inch

Brand

U.S. Solid

Material

Brass

Set Name

1-PACK

Brand Name

U.S. Solid

Unit Count

1 Count

Valve Type

solenoid valve

Thread Size

3/8 inch

Thread Type

NPT

Manufacturer

U.S. Solid

Model Number

USS2-00006

Material Type

Brass

Connector Type

Threaded

Exterior Finish

Rubber

Number of Items

1

Number of Packs

1

Number of Ports

2
