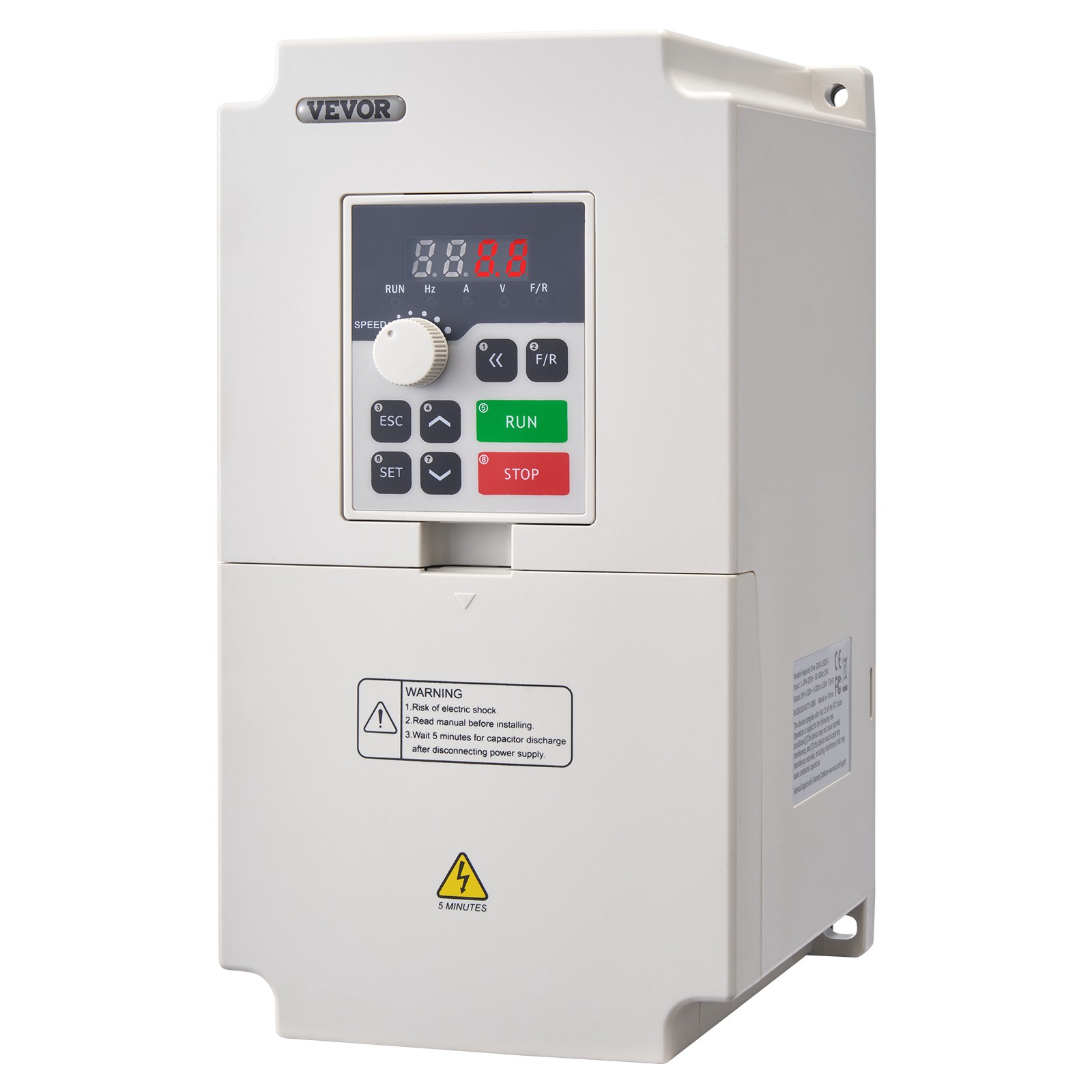

VEVOR 4KW 220V 5HP RS485 Variable Frequency Drive Converter VFD Inverter+Cable

About this item

This VEVOR VFD converts single or three-phase 220V power into a clean 3-phase output, letting you control motor speed for pumps, fans, compressors, and other machinery. It's built with a flame-retardant ABS housing, a high-temperature capacitor, and multiple safety protections to keep it running reliably in tough conditions. The unit comes with a digital display, RS485 connectivity, and everything you need to get it running: cable and manual included.

• 4kW/5.5HP VFD, model H100-4S2-1B, takes 1 or 3-phase 220V input and gives 3-phase output from 0-220V.
• RS485 port for remote control, output frequency 0-1000Hz, input/output current up to 17A.
• ABS flame-retardant casing with a capacitor rated to 105°C, plus fan cooling and a built-in heat sink.
• Built-in overload, fuse, and over/under-voltage protection for safer operation.
• CE certified, works in temperatures from -5°C to 40°C and humidity up to 90%.
• Package includes the VFD unit, an extension cable, and an English manual — net weight 2.6kg, size 220x118x148mm.

Specifications

MPN

BPQDXN4KW220V8MZP

UPC

197988756392

Brand

VEVOR

Model

Variable Frequency Drive

Power

4 kW

Feature

ESCP

Humidity

0-90% Relative Humidity (without dew)

Unit Type

Unit

Vibration

Below 0.5 G

Horsepower

5.5HP

Net Weight

5.73 lbs / 2.6 kg

Rated Load

5.5 HP

Input Phase

1 or 3 Phase

Output Phase

3 Phase

Product Size

8.7 x 4.6 x 5.8 in / 220 x 118 x 148 mm

Input Current

0-17A

Input Voltage

220V

Unit Quantity

1

Output Current

0-17A

Output Voltage

0-220V
