VEVOR VFD 2.2KW 10A 3HP Variable Frequency Drive for 3-Phase Motor Speed Control

Listed on eBay by expressio-0 · 99.6% positive

Landed price to your door

$125

Indicative price. Stores change prices, so the final amount is the store's price on the day we buy — we tell you before charging any difference.

Economy shipping · ~1.2 kg · faster options at checkout

Includes shipping and taxes.

View on the store

About this item

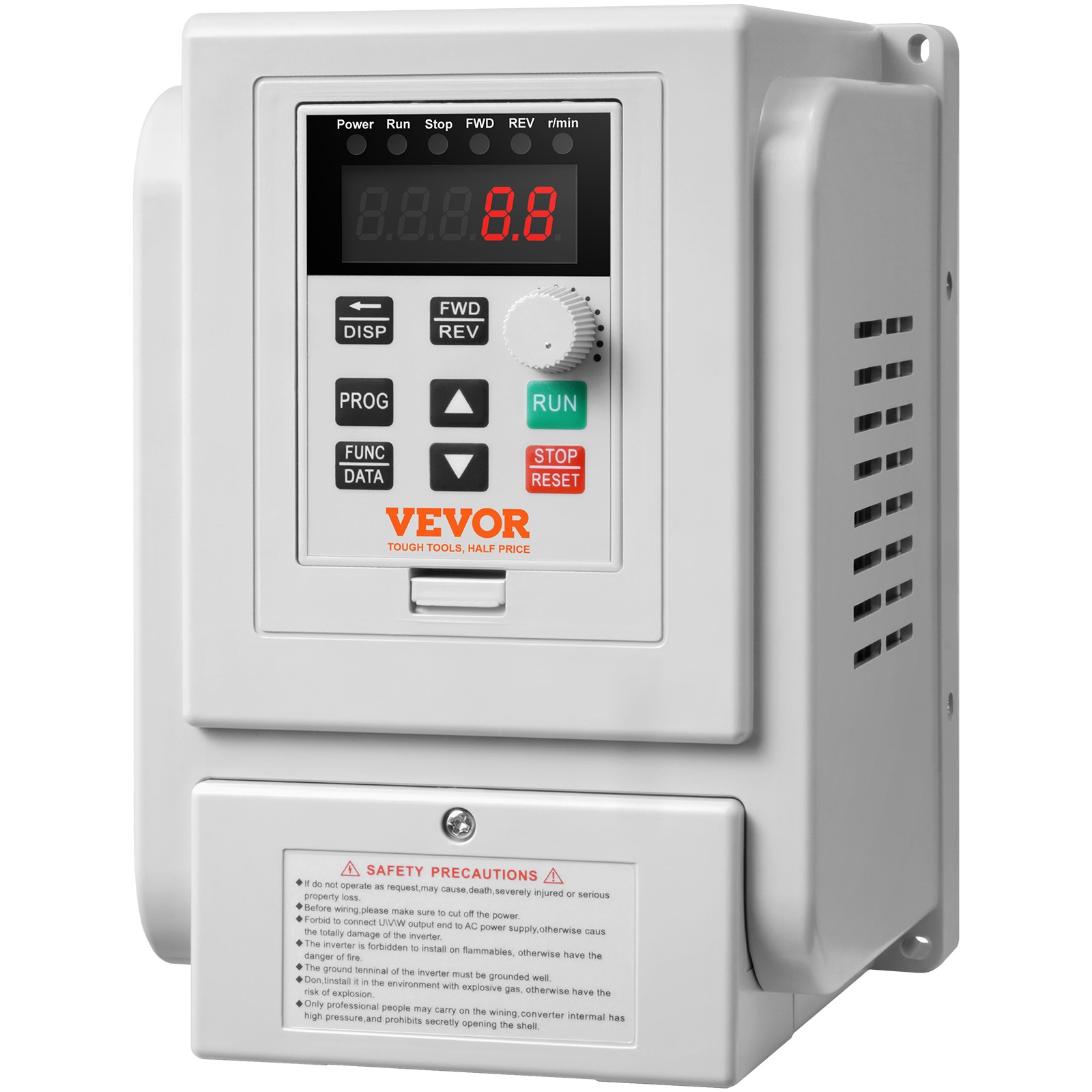

This VEVOR VFD (model AT1-2200X) controls the speed of 3-phase motors by adjusting frequency and voltage, giving smoother starts and stops. It runs on single-phase 220-240V input and outputs three-phase 220-240V, rated at 2.2KW, 3HP, and 10A. Built-in protection covers overcurrent, overload, overvoltage, and phase loss, with a fan-cooled vented housing to manage heat during long use. Suited for workshop machinery like lathes, compressors, and milling machines, but not compatible with external braking resistors.

Converts single-phase AC 220-240V input into three-phase AC 220-240V output, 2.2KW / 3HP, 10A
Input frequency 50/60Hz, output frequency 0-400Hz for wide speed control range
Soft start/stop control panel with detachable display (7.9in cable) for remote operation
10-layer protection: overcurrent, overload, overvoltage, and phase loss safety
Large cooling fan with multi-hole vented casing for extended run time
Works with 3-phase motors on compressors, lathes, fans, milling machines; no external braking resistor support

Specifications

MPN: BPDSQ3HP0000FEVFC
UPC: 840349982953
Brand: VEVOR
Model: AT1-2200X
Power: 2.2KW
Current: 10A
Horsepower: 3HP
Net Weight: 2.6 lbs / 1.2 kg ± 3%
Input Voltage: AC 220-240V Single Phase
Output Voltage: AC 220-240V Three Phase
Input Frequency: 50/60Hz
Output Frequency: 0-400Hz
Country of Origin: China
Item Model Number: AT1-2200X
Operating Temperature: 50°F-104°F / 10°C-40°C
