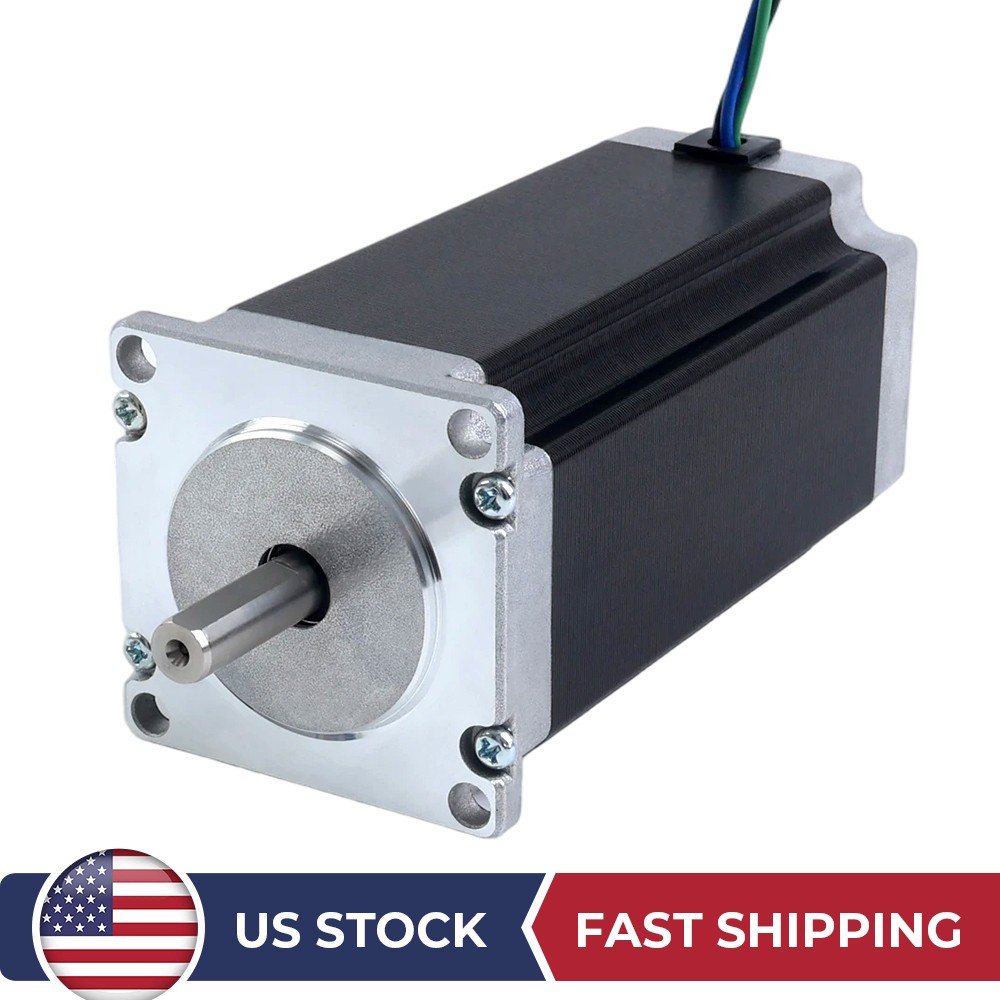

STEPPERONLINE Nema 23 Stepper Motor 425oz.in with 8mm Shaft 4.2A 113mm CNC

Listed on eBay by stepperonline · 100% positive

Landed price to your door

$91

Indicative price. Stores change prices, so the final amount is the store's price on the day we buy — we tell you before charging any difference.

Economy shipping · ~1.7 kg · faster options at checkout

Includes shipping and taxes.

View on the store

About this item

A heavy-duty Nema 23 stepper motor built for CNC machines and other motion-control setups. It delivers 3.0Nm of holding torque at 1.8° per step, drawing 4.2A per phase on a 4-wire bipolar configuration. With an 8mm D-cut shaft, 113mm body length, and 400mm leads, it's ready to wire into most standard CNC controllers running 24-48VDC.

Nema 23 bipolar stepper motor, model 23HS45-4204S1, made by StepperOnline
Holding torque of 3.0Nm (425oz.in) with 1.8° step angle (200 steps/rev)
Rated 4.2A per phase, phase resistance 0.88 ohms, inductance 3.4mH ±20% (1kHz)
Frame 57 x 57mm, body length 113mm, 8mm D-cut shaft, 24mm shaft length (20mm D-cut)
4-wire bipolar wiring, 400mm lead length, runs on 24-48VDC
Weighs 1.668kg, suited for CNC and DIY motion projects

Specifications

MPN: 23HS45-4204S1
Brand: StepperOnline
Shaft Type: D-cut
Current Type: DC
Holding Torque: 3.0Nm(425oz.in)
Shaft Diameter: 8mm
Full Step Angle: 1.8° (200 Steps)
Country of Origin: China
Resistance per Phase: 0.88ohms
Wiring Configuration: 4-Wire Bipolar
Rated Current per Phase: 4.2A
Actual Rated Input Voltage: 24-48VDC
Nominal Rated Input Voltage: 24-48VDC
