About this item

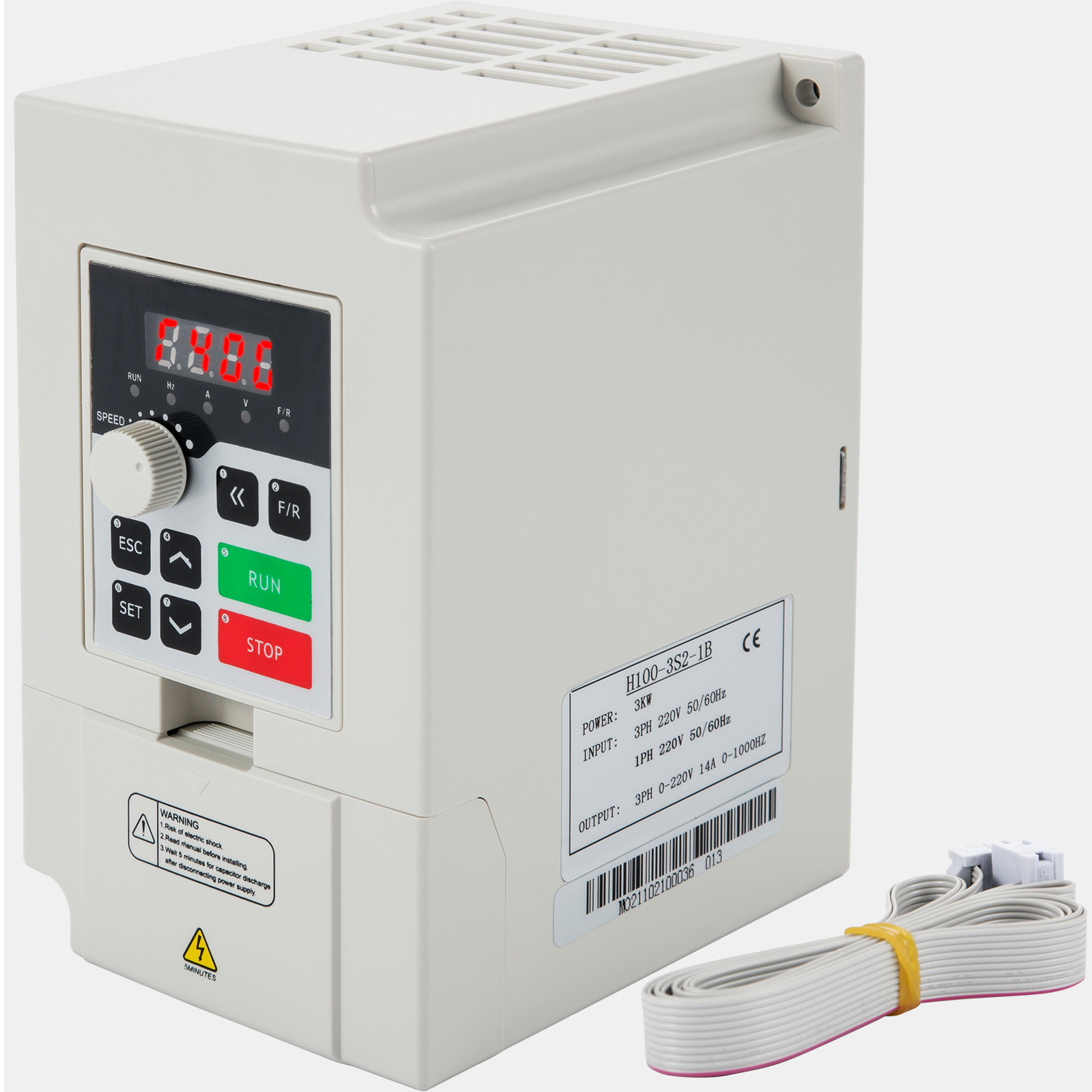

This is a 3kW/4HP variable frequency drive, model H100-3S2-1B, that takes single-phase or three-phase 220V input and delivers 3-phase output for motor speed control. It supports V/F and vector control with digital, analog, RS485/Modbus, and PID frequency setting, plus multiple protection features like overload, over/under-voltage, and fuse protection. The unit ships with an English manual and an extension wire.

Model H100-3S2-1B, 3kW (4HP) rated power, accepts single-phase or three-phase 220V input and outputs 3-phase power
Output current 0-14A, output frequency range 0-1000Hz, input frequency 50/60Hz
V/F and vector control modes, with digital, analog, RS485 (Modbus) and PID frequency setting options
ABS flame-retardant housing, fan cooling with built-in radiator, capacitor rated up to 105°C, CE certified
Works in -5°C to 40°C, 0-90% humidity, vibration below 0.5G; size 150 x 90 x 118mm, weight 1.1kg
Suited for compressors, HVAC units, pumps, fans, mixers, extruders, winders and similar motor-driven machinery

Specifications

MPN: BPQDXN3KW220VEQ8A
UPC: 197988042297
Brand: Uimoso
Model: H100-3S2-1B
Power: 3 kW
Humidity: 0-90% Relative Humidity (without dew)
Vibration: Below 0.5 G
Horsepower: 4 HP
Net Weight: 2.43 lbs / 1.1 kg
Input Phase: 1 or 3 Phase
Output Phase: 3 Phase
Product Size: 5.9 x 3.54 x 4.6 in / 150 x 90 x 118 mm
Input Current: 0-14A
Input Voltage: 220V
Output Current: 0-14A
Output Voltage: 0-220V
Input Frequency: 50/60 Hz
Output Frequency: 0-1000 Hz
Working Temperature: 23~104℉/-5 ~ 40 ℃
